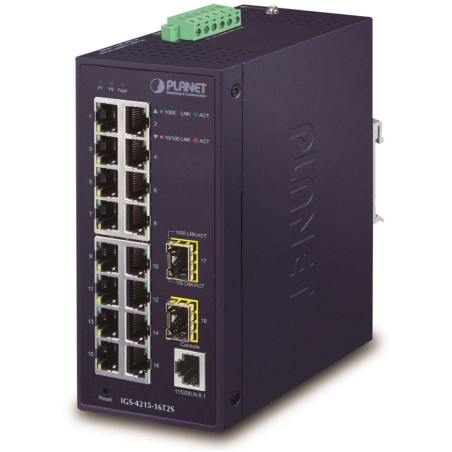

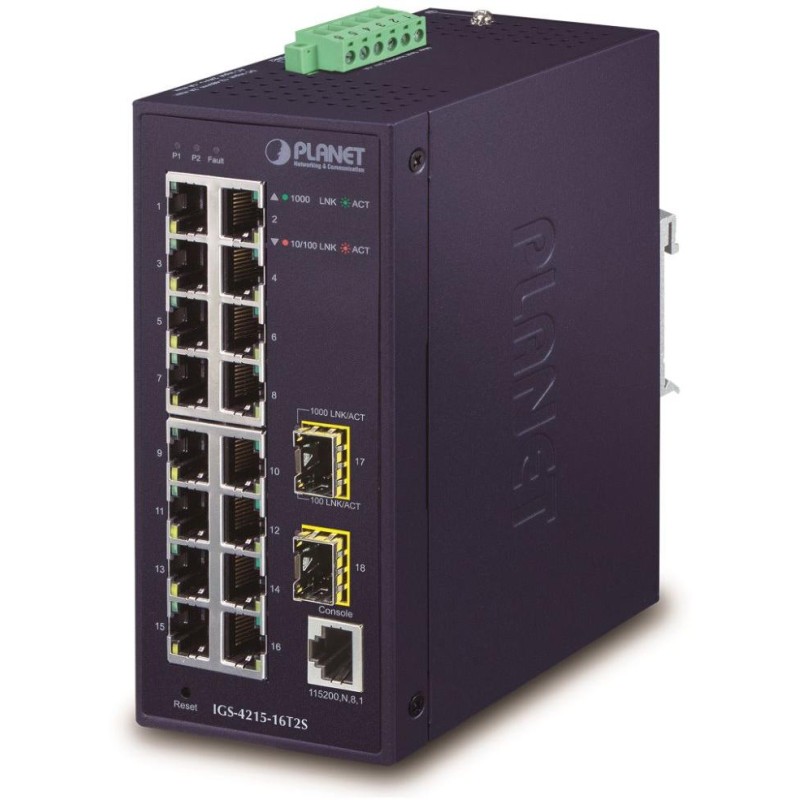

PLANET IGS-4215-16T2S
Industrial managed switch 16x RJ-45 10/100/1000Base-T, 2x SFP 100/1000Base-SX/LX/BX (DDM diagnostics).
Support IPv4/IPv6, Web/SNMP/Telnet/console management , VLAN 802.1Q, Spanning Tree, Multiple/Rapid Spanning Tree, link aggregation 802.3ad LACP , QoS, DHCP snooping, LLDP, IGMPv1/v2/v3.
Alarm output in case of power failure, ESD protection up to 6 kV, IP30 protection, aluminum housing, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, dual power supply DC 12-48 V + AC 24 V.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100/1000Base-T, 2 x SFP 100/1000BASE-SX/LX/BX, 1 x RJ-45 serial console port
Memory: 8k MAC addresses, 4.1Mb buffer
Throughput: 36 Gbps bus, operational 26.79 Mpps (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 12-48 V redundant + AC 24 V, connection possible from two different sources (not included), total power consumption up to 15 W
Protection: ESD up to 6kV, switching alarm relay (24V/1A) in case of primary power failure, reverse polarity protection, power connection on the terminal block
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 152 x 107 x 66 mm
Weight: 813g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/IP or 802.1p
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
VLAN management
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, multiple ports on one
Link aggregation: IEEE 802.3ad LACP and static trunk, 8 ports in 8 groups
IGMP multicast: IGMP v1/v2/v3, support for IGMP querier mode and port filtering
Authentication of connected devices: IEEE 802.1x (RADIUS), IP-MAC port binding
DHCP Snooping: yes (blocking foreign ch DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
