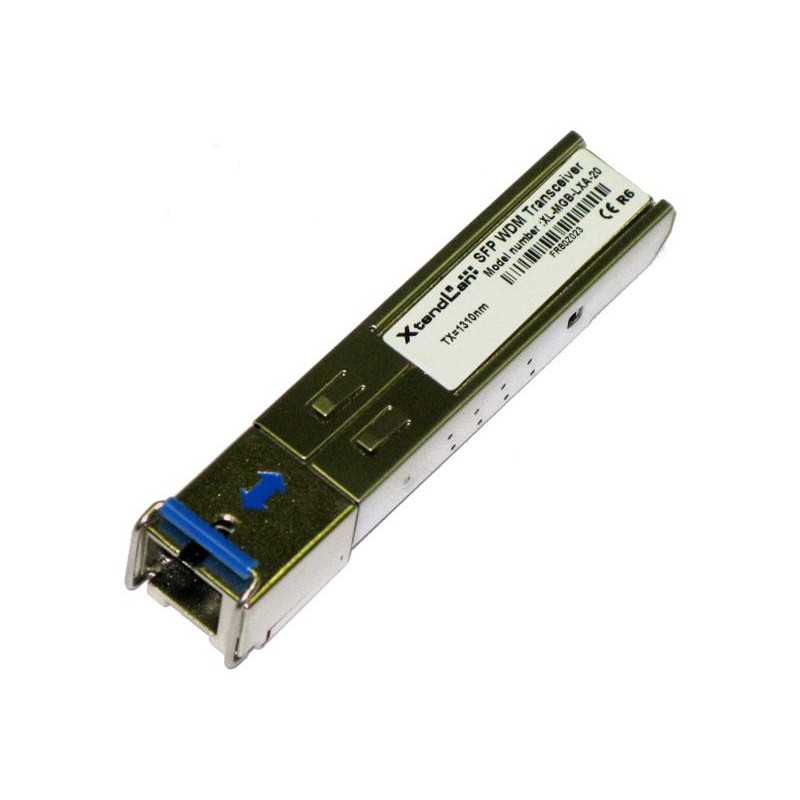

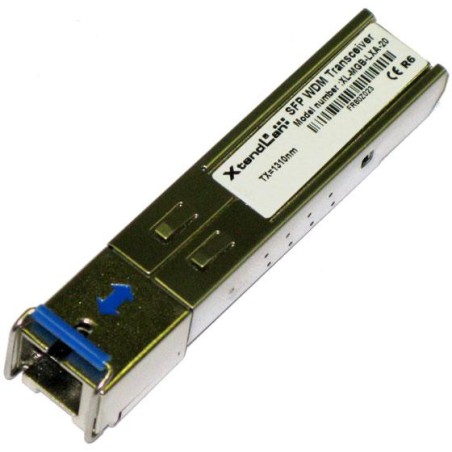

XtendLan MGB-LXAED
Gigabit miniGBIC (SFP) module, 1000Base-LX, simplex SC connector, single-mode, WDM. Range 3-10km. TX 1310nm/RX 1550nm. DDM diagnostics. Support for most manufacturers (Cisco, Dell, Planet, ...)
Conversion Gigabit miniGBIC module in Small-Form-Pluggable (SFP) format. Standard 1000Base-LX, IEEE82.3z. Simplex SC connector, for single-mode fibers. Enables bidirectional communication over a single optical fiber.
They are equipped with Digital Diagnostic & Monitoring. In switches and converters equipped with DDM support, they are able to diagnose the amplitude of the optical signal.
Expands/converts ports of switches and converters with a miniGBIC (SFP) slot.
For connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the counterpart sides, pairs of modules are distinguished by a code representing side A or B.
BASIC SPECIFICATIONS
Module type: SFP
Connector: SC simplex
Wavelength (transmission/reception): 1310 nm / 1550 nm
Fiber type: Singlemode
Connection range: up to 3 km
Transmission margin: 12 dB
Sensitivity: -21 dBm
Transmission speed: 1 Gbps
