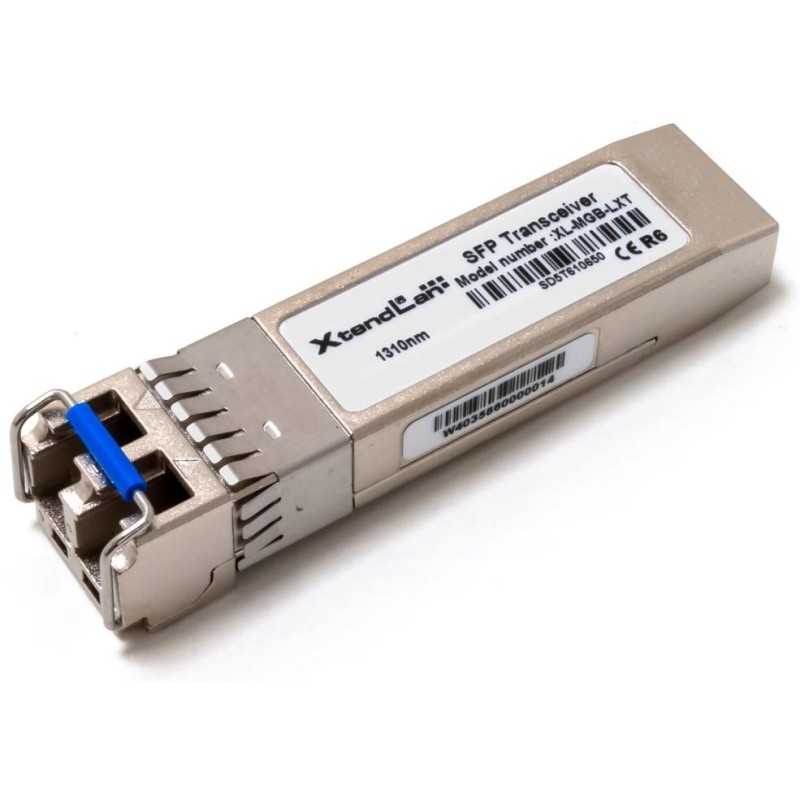

XtendLan XL-MGB-LXT
Gigabit miniGBIC (SFP) module, 1000Base-LX, duplex LC connector. Reach 20 km on single mode fiber 9/125 um. Reach 550 m on multimode fiber 62.5 and 50/125 um (without the need for mode conditioning patch cable). Wavelength 1310 nm. Temperature range -40 to +85 °C. Support for most manufacturers (Cisco, Dell, Planet, ...)
Conversion Gigabit module miniGBIC Small-Form-Pluggable (SFP). Standard 1000Base-LX, IEEE82.3z. Duplex LC connector, for single-mode fibers.
Equivalent to Cisco GLC-LX-SM-RGD. Expands/converts ports of switches and converters with a miniGBIC (SFP) slot. E.g. for GSW-2400, FGSW-4840S, SGSW-2620, WGT/GT-705A, ENW-9607M.
BASIC SPECIFICATIONS
Module type: SFP
Connector: LC
Receiver operating wavelength: 1310 nm (range 1260 - 1360 nm)
Fiber Type: Single Mode/ Multi Mode
Connection range: up to 20 km
Transmission margin: min. 12 dB
Broadcasting:
Power min. -9dBm, max. -3dBm (for 9/125um fiber).
Wavelength: typically 1310nm, range 1260-1360nm, spectral width (RMS) 4nm.
Extinction ratio (on to off signal ratio): 9dB (at 1.25Gbps)
Income:
Wavelength: 1260-1600nm.
Sensitivity -21dBm for BER<1e-12.
Receiver saturation at -3dBm, for BER<1e-12.
Signal detection (LOSA) at max. -22dBm
Loss of Signal (LOSD) at min -35dBm
