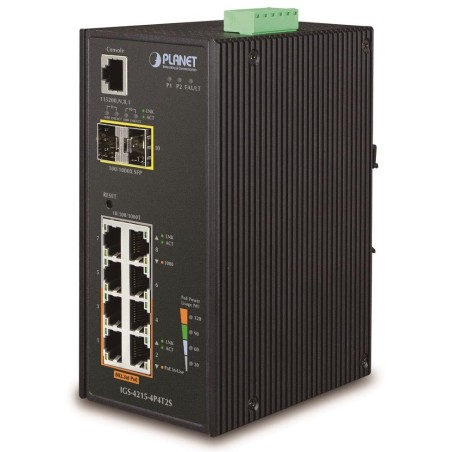

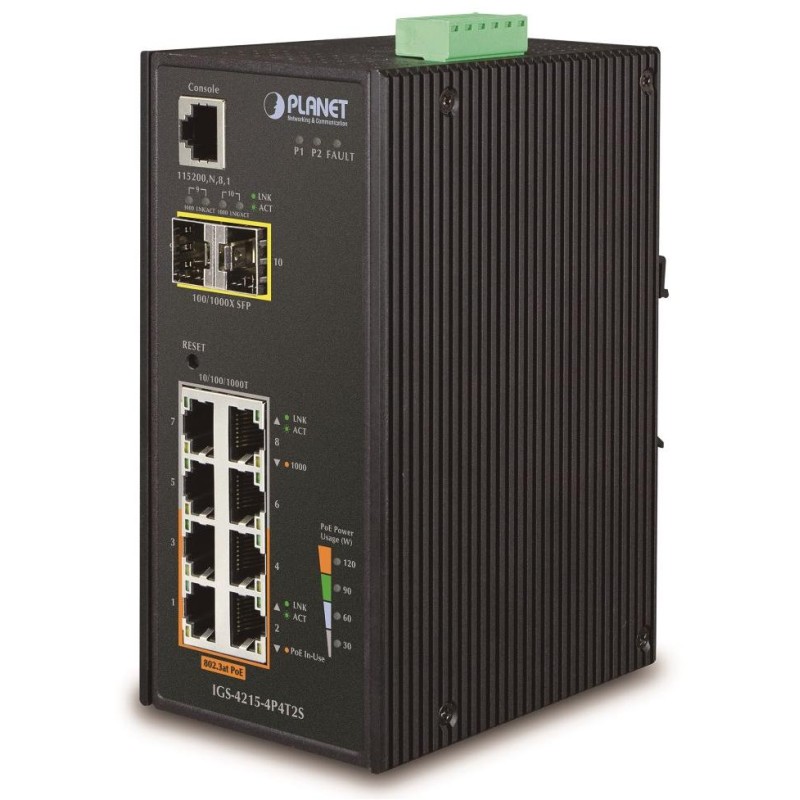

PLANET IGS-4215-4P4T2S
Industrial manageable PoE switch 8x 10/100/1000Base-T, including 4x PoE IEEE 802.3af injectors, power up to 140W; 2x SFP 100/1000Base-X (DDM diagnostics).
Support IPv4/IPv6, Web/SNMPv3 management, VLAN 802.1Q, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP snooping, LLDP, IGMPv3.
Alarm output in case of power failure, ESD protection, IP30 protection, aluminum housing, operating temperature -40-75°C. Mounting on DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows you to directly power up to 4 end devices according to the IEEE 802.3at standard, making it an ideal element for applications with reduced power options.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX, 1 x RJ-45 (RS232) console serial port
Memory: 8k MAC addresses, 4.1Mb buffer
Throughput: 20 Gbps bus, operational 14.8 Mpps (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 48-56V redundant power supply, connection possible from two different sources (not included), total power consumption up to 153W
Protection: ESD up to 6kV, switching alarm relay (24V/1A) in case of primary power failure, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 161 x 107 x 72 mm
Weight: 1004g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/IP or 802.1p
Port shaper settings in the range of 500kb - 1000Mb
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
VLAN management
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1 protocolwith Multiple Spanning Tree
Port mirroring: RX, TX, RX+TX, multiple ports on one
Link aggregation: IEEE 802.3ad LACP, 4 ports in 4 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: 144 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4 x up to 36 W
Power supply type: End-span
Advanced features:
integrated scheduler for planned shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
Wall mounting using the supplied frame :
