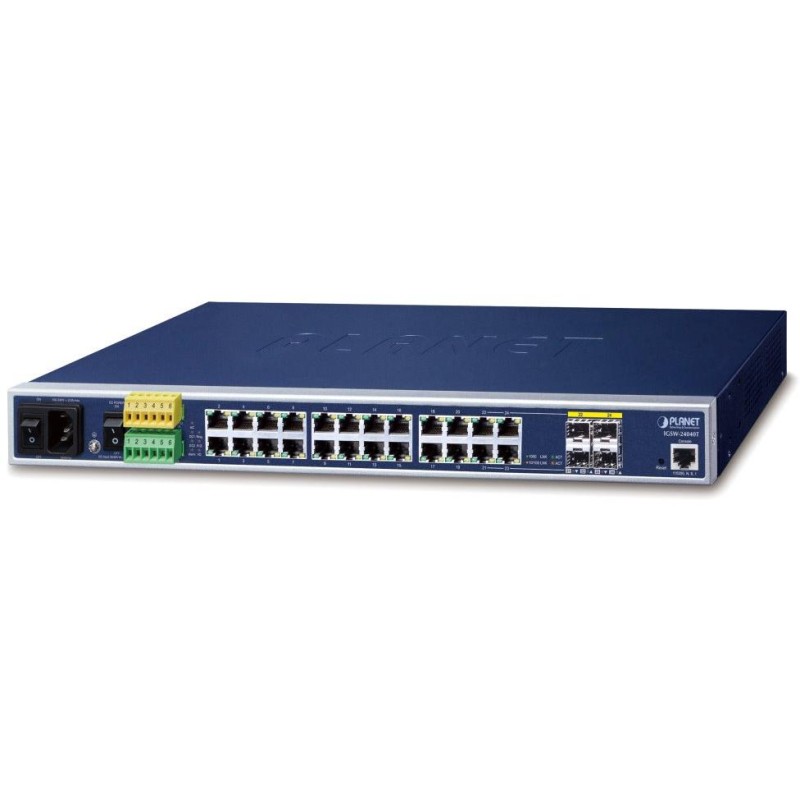

PLANET IGSW-24040T v4
24-port L2/L3 Gigabit Managed Switch for Industrial Applications, 24x RJ-45 10/100/1000 Base-T, 4x SFP 100/1000 Base-X/FX shared slots with ports 21-24 (combo ports) , 1x RJ-45 console port (RS-232), 2x DI/DO . It uses a user-friendly "Front Access" design for easy connection and maintenance when placed in a distribution frame.
Console, Telnet, Web, SNMP v1/v2c management, SSH v2 support, TLS v1.2, SNMP v3, RADIUS/TACACS+ authentication, MAC/IP ACL control list, VLAN, 802.1Q, Spanning Tree Protocol (802.1d, 802.1w, 802.1s), IGMP and MLD Snooping, QoS, 802.3ad LACP, rate limitation per port (Ingress/Egress), logging (Event Management).
IPv4/IPv6 software static routing, up to 8 VLAN interfaces and 32 routing entries, UDLD, VLAN Translation, Login Password Retry Lockout, cybersecurity, NMS System and CloudViewer support, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching), Modbus/TCP protocol for device management and monitoring.
ESD+EFT protection up to 6 kV, redundant power supply AC 100-240 V + dual DC 36-60 V , IP30 protection, operating temperature -40 to +75 °C, fanless (without fans), installation up to 19"/1U + Front Access .
Ethernet ring topologies STP/RSTP/MSTP and ERPS
It is a powerful, manageable industrial switch with redundant power supply, ideal for applications and deployments in industrial environments or in places where high demands are placed on the reliability and robustness of network devices. The declared mechanical durability and operability in an extended ambient temperature range provide a 100% guarantee of data transmission and control without packet loss or CRC errors.
The switch is suitable not only for industrial use, it is an ideal solution for outdoor installations such as subscriber or line distribution boards, it can be advantageously used in attics or elevator areas. It can also be dually powered to protect against failure of an internal or external source. The failure is signaled for possible transmission of a signal message to a fire or security control panel. Disconnection of the Ethernet port connection can be signaled by a warning message to the network administrator.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24x RJ-45 10/100/1000 Base-T, 4x SFP 100/1000 Base-X (mini-GBIC), 1x RJ-45 (RS-232) serial console port
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 48 Gbps bus, operational 35.71 Mpps (64B)
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: AC 100-240 V power supply with DC 36-60 V redundancy (dual), connection possible from two different sources (redundant power supply not included), total power consumption up to 19.7 W
Protection: ESD up to 6 kV, EFT up to 6 kV
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 440 x 200 x 44.5 mm
Weight: 2.788 kg
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c + secure interfaceSSH v2, TLS v1.2, SNMP v3
Access control: IP and MAC based ACL protocol (256 rules),
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: traffic classification, strict priority and WRR, 8 levels (prioritization by port, DSCP/ToS field in IP packet, 802.1p or 802.1Q VLAN tag/label
Port shaper settings in the range of 100 Kbps - 1000 Mbps (Ingress/Egress), Bandwidth Control
VLAN support:
802.1Q
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
up to 4K VLAN groups and 4095 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, multiple ports on one
Link aggregation: IEEE 802.3ad LACP, 12 groups with 8 ports per trunk
Multicast IGMP: IGMP v1/v2/v3 snooping, up to 255 groups, IGMP querier mode support
Authentication of connected devices: 802.1X - port-based authentication, RADIUS client for cooperation with RADIUS server, access authentication using RADIUS/TACACS+
DHCP Snooping: yes (blocking foreign DHCP servers) + DHCP Option82 support
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault (SFP-DDM (Digital Diagnostic Monitor))
Ethernet ring topologies STP/RSTP/MSTP and ERPS
