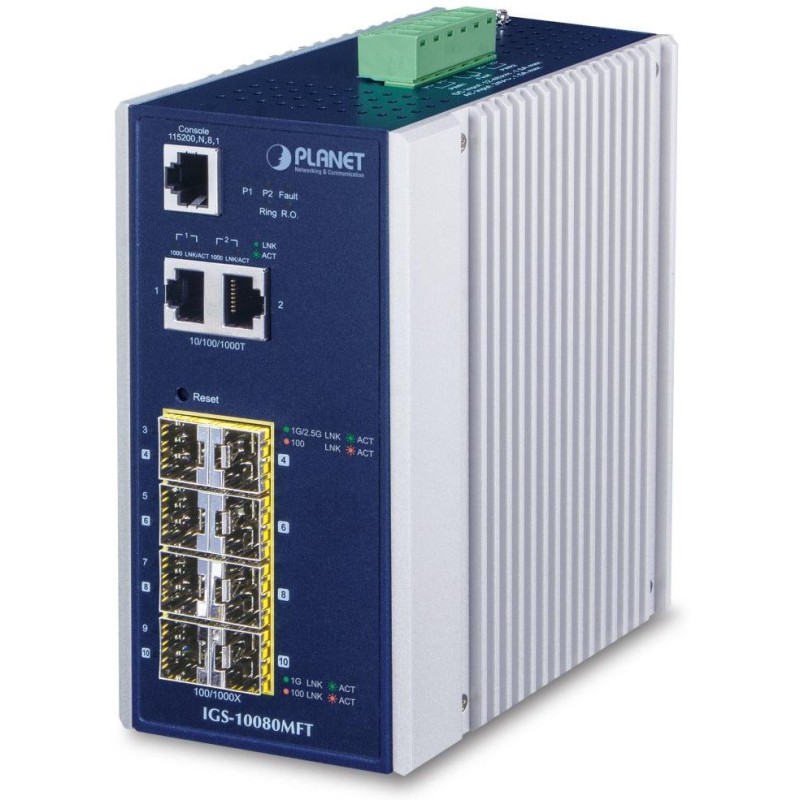

PLANET IGS-10080MFT
Industrial managed switch and converter 2x SFP 100/1000/2500 Base-X, 6x SFP 100/1000 Base-X, 2x RJ-45 10/100/1000 Base-T , IPv6 support.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP line aggregation, Port shaper, QoS, DHCP snoopinp, LLDP, ERPS Ring (ITU-T G.8032) , MODBUS support and 1588 v2 PTP (Precision Time Protocol).
Redundant power supply option in the range of 12-48 V DC or 24 V AC, IP30 protection, aluminum housing, operating temperature -40~75°C.
Cabling diagnostics. Surge protection ESD+EFT LAN and power ports up to 6kV. DIN rail or wall mounting.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
IGS-10080MFT is suitable for building FTTH networks or can be applied for connecting end devices in technically and operationally demanding conditions via optical path. Furthermore, it is equipped for redundancy, in addition to the well-known Spanning Tree method (whose recovery time is in the order of seconds), primarily with a specialized "Redundant ring" function which has a recovery time and finding a new path of up to 300ms.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 2x SFP 100/1000/2500 Base-X, 6x SFP 100/1000 Base-X, 2x RJ-45 10/100/1000 Base-T
Memory: 8k MAC addresses
Throughput: 26 Gbps bus, operational 19.3 Mpps (64B)
Transmission support: JumboFrame 9KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: AC 24 V or DC 12-48 V redundant, connection possible from two different sources (not included), total power consumption up to 13.92 W
Protection: ESD up to 6kV, EFT up to 6kV, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting), switching alarm relay (24V/1A) in case of primary power failure
Operating temperature: -40 to 75°C
Dimensions: 152 x 107.3 x 76.8 mm
Weight: 1036g
Administration functions:
Management: Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 500Kb - 1000Mbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, one to one
Link aggregation: IEEE 802.3ad LACP, up to 5 groups of 10 ports
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, IP/MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
