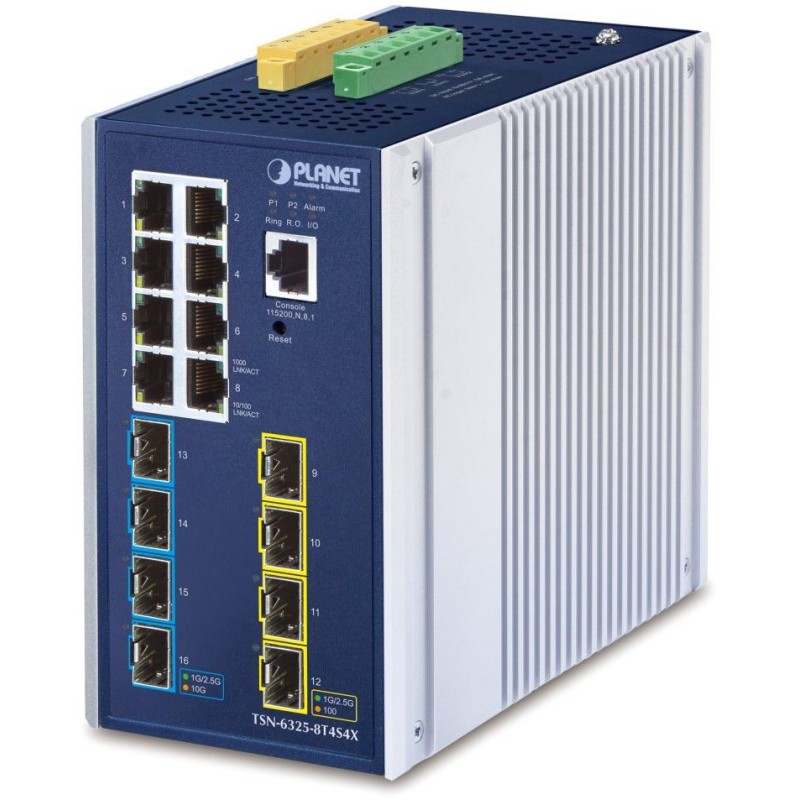

PLANET TSN-6325-8T4S4X
Innovative industrial Ethernet TSN (Time-Sensitive Networking) switch ensuring reliable transmission of time-sensitive data. It is designed for stable operation in demanding environments. It addresses all levels of the industrial automation network, from the fieldbus to the plant backbone. It guarantees high-priority end-to-end traffic transmission and extremely low latency.
New industrial L3 switch and converter for time-sensitive networks (TSN), 8× GbE RJ-45, 4× 2.5G Base-X SFP and 4× 10G SFP+ Base-SR/LR (backward compatible with 1000 Base-SX/LX/BX and 2500 Base-X SFP).
ERPS ring (ITU-T G.8032 ERPS - Ethernet Ring Protection Switching) , industrial rugged design, digital inputs and outputs, Layer 3 IP routing functions, QoS, security and other features.
Dual power supply in the range of DC 9-48 V or AC 24 V , active redundant protection in the event of a power failure, IP30 protection, aluminum housing, operating temperature -40 to +75 °C , overvoltage (up to 6 kV) and ESD protection up to 5 kV , mounting on a DIN rail or directly on the wall.
Time-sensitive network protocols:
High Precision Time Synchronization
• IEEE1588 (Time Stamping)
• 802.1AS-Rev gPTP (default profile)
Shapers
• 802.1Qbv Time-aware Scheduling
• 802.1Qch Cyclic Queuing and Forwarding
TSN Stream Policing
• 802.1Qci Per Stream Filtering and Policing
Redundancy
• 802.1CB Frame Replication and Elimination for Redundancy for seamless redundancy
• Support for linear and ring protection (Standard Linear and Ring protection)
Delay Reduction
• EEE 802.1Qbu Frame Preemption
• IEEE 802.3br Interspersing Express Traffic (IET)
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS/TSN series switches are easily installed on a standard DIN rail or directly on a wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large operating temperature fluctuations (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8× GbE RJ-45, 4× 2.5G Base-X SFP, 4× 10G SFP+, 1× RJ-45 console port
Memory: 32k MAC addresses
Throughput: 116 Gbps bus, operational 86.3 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: DIN rail, wall-mounted
Power supply: dual, DC 9-48 V or AC 24 V, total power consumption max. 38.2 W (power supply not included)
Protection: ESD up to 5 kV DC, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C
Dimensions: 152 × 135 × 86 mm
Weight: 1597g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
L3 routing: max. 128 VLAN interfaces, 512 static routing entries, 3072 routing table entries, OSPF v2/v3, RIP v2, IPv4/IPv6 HW static routing
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: traffic classification, strict priority and WRR, 8-level priority for switching (port number, 802.1p priority, 802.1Q VLAN tag, DSCP/ToS field in IP packet)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
VLAN based on MAC address
Protocol-based VLAN
Voice VLAN
VLAN based on IP Subnet (IP Subnet)
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups from 4095 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, max. 8 trunk groups with max. 16 ports per group
Multicast: IGMP v1/v2/v3, IGMP querier mode support (up to 255 groups), MLD v1/v2, MLD querier mode support (up to 255 groups)
Authentication of connected devices: IEEE 802.1x, Local/RADIUS, MAC
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts.
The device is vibration resistant (IEC-60068-2-6).
The device is resistant to overload, short-term acceleration of 50g, long-term 4g (IEC-60068-2-27).
DIN rail mounting :
Wall mounting using the supplied frame :
