Ubiquiti UniFi U7 Outdoor - Wi-Fi 7 AP, 2.4/5GHz, up to 5 Gbps, sector antenna, 1x 2.5GbE, outdoor, PoE+ (without PoE injection)

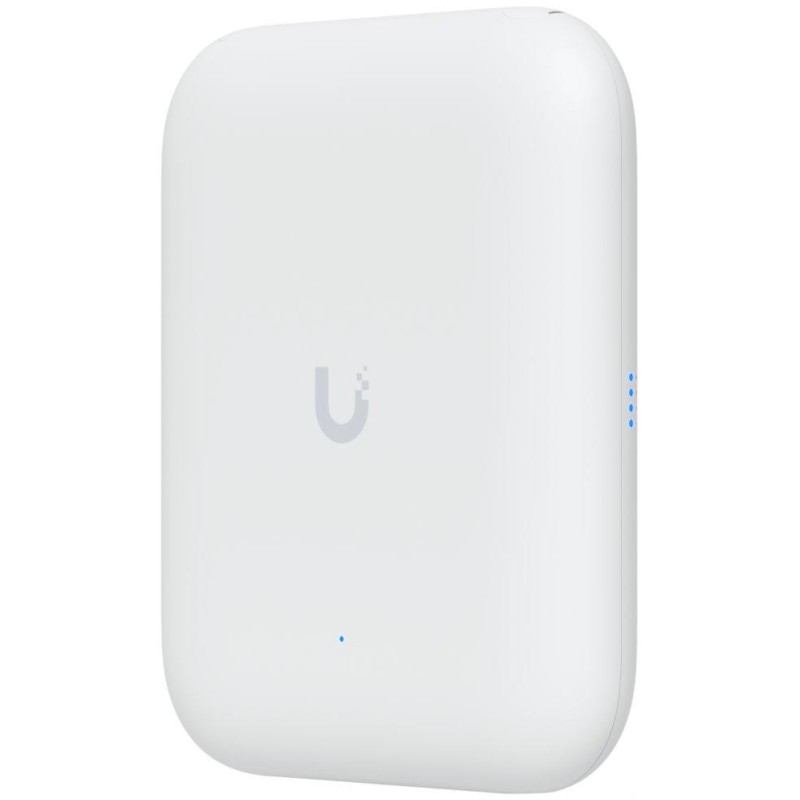

Ubiquiti UniFi U7 Outdoor

The Ubiquiti UniFi U7 Outdoor is an outdoor Wi-Fi 7 AP with support for 2.4 and 5 GHz frequency bands and transmission rates of up to 4324 Mbps for 5 GHz and 688 Mbps for 2.4 GHz . The U7 Outdoor model is designed specifically for professional and enterprise deployments and is ideal for applications requiring flawless Wi-Fi services in large outdoor environments. It supports PoE+ power supply.

The UniFi U7 Outdoor is a reliable outdoor hotspot solution using the 802.11a/b/g/n/ac/ax/be standard. It is equipped with a 2x2 MIMO antenna system in the form of an integrated directional antenna with a gain of 8 dBi/12.5 dBi (2.4 GHz/5 GHz) and a beamwidth of 90°/45° (2.4 GHz/5 GHz) . The package also includes two external omnidirectional antennas with a gain of 3 dBi/4 dBi (2.4 GHz/5 GHz), which also support software beamwidth adjustment.

•

• Wi-Fi 7

• 4 data streams

• Coverage 465 ^m2 (integrated directional antenna)

• Software-adjustable antenna beamwidth (with supplied omnidirectional antennas)

• WPA3 encryption

• More than 200 connected devices

• Power supply via PoE+ (802.3at)

• Operating temperature -30 to +60 °C

• 2.5GbE uplink

• Wall or pole mounting (⌀ 25–60 mm)

• Weather resistance (IPX6)


UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Standard: 802.11a/b/g/n/ac/ax/be

Antenna: integrated directional antenna 8 dBi (2.4 GHz) + 12.5 dBi (5 GHz), 2× RP-SMA connector (2× external omnidirectional antenna included)

Operating frequency: 2.4 GHz, 5 GHz

Data transfer rate: 688 Mbps (2.4 GHz), 4324 Mbps (5 GHz)

PoE: yes, active PoE+ 802.3at

Ports : 1× 2.5GbE RJ-45

Dimensions: 208 × 170 × 54.5 mm

Weight: 1200g

Manual (assembly instructions):
