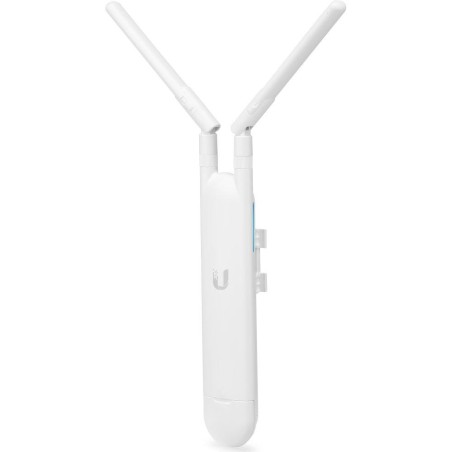

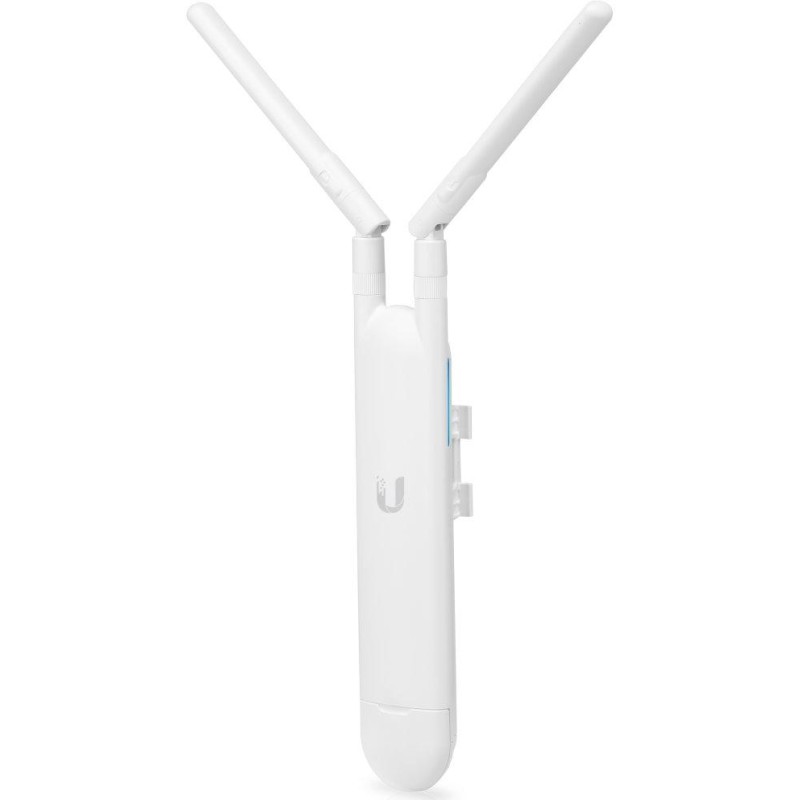

Ubiquiti UniFi AP AC Mesh
UniFi AC Mesh is a powerful 2.4GHz/5GHz hotspot unit with Plug & Play Mesh technology. Ideal for covering open spaces with Wi-Fi signal, such as squares, industrial halls, and areas around buildings.
UniFi AC Mesh has 2x2 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band, thanks to which it achieves a throughput of up to 1167 Mbps . Of course, there is full support for the 802.11a/b/g/n/ac standards for connecting older and newer client devices.
UniFi AC Mesh has two waterproof omnidirectional detachable antennas for the 2.4 GHz (3 dBi) and 5 GHz (4 dBi) bands, which can be replaced with the UniFi UMA-D antenna if necessary to increase signal range.
Plug & Play Mesh technology allows you to create so-called multi-hops, i.e. provide wireless connectivity to another Mesh unit that distributes the signal to clients or another unit, similar to repeaters. You can use this in places where it is not possible to provide connectivity via Ethernet cable. This significantly simplifies installation and Wi-Fi signal coverage in outdoor locations.
UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .
The UniFi Network Application can be installed on a PC, MAC, Linux device, or using one of the cloud services. The recommended option is the UniFi Cloud Key with pre-installed software and cloud access.
Advantages of the UniFi system:
- Multiple SSIDs with different security types
- Unlimited expansion of the system with additional UniFi devices
- No licensing fees
- Speed limiting by SSID
- Advanced AirTime Fairness and Band Steering features
- RF scan of the surrounding environment
- Guest account
- Billing system - use of external server, definition of vouchers, direct payments via PayPal
- Load Balance - switching clients to less busy UniFi
- Support for 802.3af power standard
- Plug & Play Mesh Technology
- VLAN support
A big advantage is the variable way of mounting the unit. UniFi AC Mesh can be installed on a wall, on a pole or directly on the UniFi UMA-D sector antenna, which you can find under the code NATUBT0010 (not included in the package).
lt="" src="https://www.img4.cz/imgProducts/images/images320/NAAUBT1086%201.jpg" width="313" /> UniFi AC Mesh supports 24V passive PoE and 802.3af PoE.
The package includes a Gbit PoE injector 24 V (0.5 A) .
The UniFi AC Mesh model meets all requirements for use in the European Commission's WiFi4EU project . See WFA certification in the documents below the description.
The UniFi Network Application is constantly being improved, so we recommend using the current version, which you can download from the Ubiquiti website in the Downloads section.
BASIC SPECIFICATIONS
Wi-Fi standard: 802.11a/b/g/n/ac
Antenna: 2.4GHz: 3dBi, 5GHz: 4dBi
Ports: 1x 10/100/1000 Ethernet port
Frequency band: 2.4GHz, 5GHz
PoE support: yes
Dimensions: 353 x 46 x 34.4 mm
