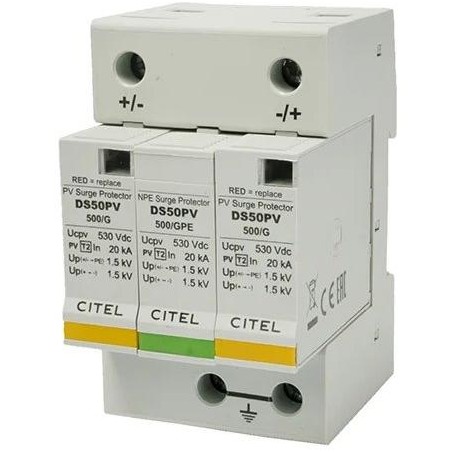

Solarmi DS50PVS-500/G surge arrester, 500Vdc, CE

Xtend Solarmi DS50PVS-500/G

The DS50PVS/G series surge arresters are surge arresters specially developed for protecting photovoltaic installations against surges and are available in versions for voltages of 500/800/1000 V DC. The exchangeable modules allow easy replacement of a damaged part without the need to dismantle the connected wires.

Surge arresters contain a high-performance varistor and a gas-filled spark gap in a so-called Y connection. This special combination enables error-free insulation resistance measurement, as no leakage current occurs.

DS50PVS/G series arresters are supplied as standard in a version with remote fault signaling.

Features:

•

• Surge protection for photovoltaics type 2

• Leakage current per pole: In = 20 kA / Imax = 40 kA

• Safe disconnection device

• No aging due to leakage currents

• Fault-tolerant Y-connection

• Insulation resistance measurement is not subject to error

• No damage occurs in the event of insulation failure

• Modular structure

• Remote signaling contact as standard

• Complies with EN 61643-11 and IEC 61643-1 standards


BASIC SPECIFICATIONS

Rated voltage (Un): 500 V

Max. permissible operating voltage (Uc): 530 V

Limiting leakage current Imax (8/20 µs): 40 kA

Rated leakage current ln (8/20 µs): 20 kA

Protection: IP20

Operating temperature: -40 to +85 °C
