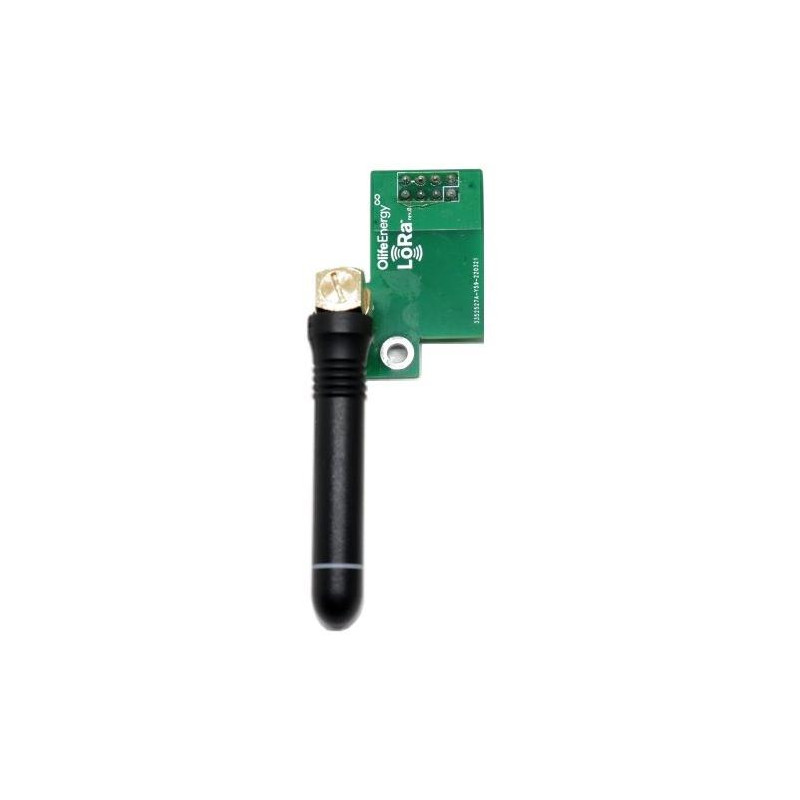

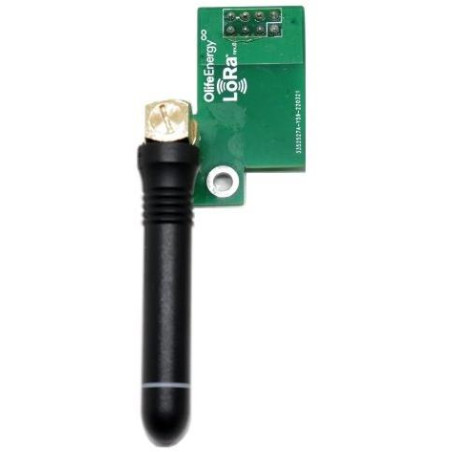

OlifeEnergy LoRa module
The wireless communication module based on LoRa technology can be installed in all OlifeEnergy chargers and SmartMeters. One module is installed in the charger, the other in the SmartMeter. One of them is set as RX and the other as TX module. The wireless module uses the LoRa communication protocol with a frequency of 868 MHz . The working range varies depending on the environment. Due to the similar frequency range, the signal's ability to pass through objects is similar to that of a mobile phone signal. In open areas, the working range of the module can exceed 100 meters.
The package contains one module.
BASIC SPECIFICATIONS
Compatibility: OlifeEnergy charging stations and SmartMeters (manufactured from January 1, 2022)
Protocol: LoRa
Frequency: 868MHz
Range: up to 100 m (open area)
Setting the address and installing the module into the SmartMeter
If your Olife SmartMeter is equipped with a wireless communication module, you must set the channel on which LoRa transmits and receives the signal. The ID in the SmartMeter is set using DIP switches and installed on the motherboard as shown in the picture. The range is 0-15. The same ID must be set in the Wallbox.
Setting the address and installing the module in the Wallbox
If your OlifeEnergy charging station is equipped with a wireless communication module, you must set the channel on which LoRa transmits and receives the signal. For the OlifeEnergy charger, the channel can be changed using the smartphone app. The range is 0–15. After setting the ID in the charging station, reset the charger using the smartphone app or by disconnecting the power supply to the charging station. The same ID must be set in the SmartMeter.
