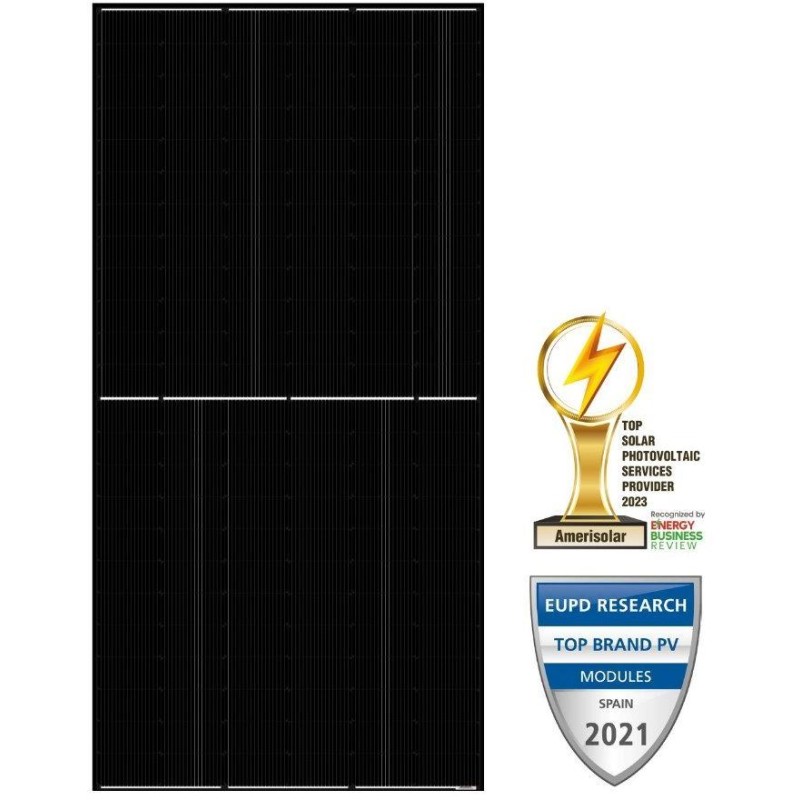

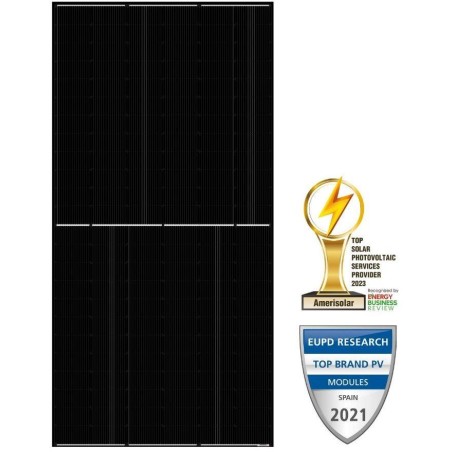

Xtend Solarmi AS-7M144N-BHC-585
Precisely manufactured monocrystalline solar panel with a power of 585 Wp and an efficiency of up to 22.65% . The panel is suitable not only in conjunction with microinverters for GridFree systems , but also for larger installations.
A high-quality solar panel with a 30-year manufacturer's performance guarantee . More information can be found below in the related documents.
Highly efficient monocrystalline panels in dimensions of 2279 × 1134 × 35 mm at a favorable price for a quick return on investment. In addition, all supplied panels have a positive tolerance of nominal power.
This solar panel is in the list of products of the New Green Savings program (code: SVT36726)
N-Type TOPCon technology
This is a type of solar cell with passive contacts on the back and N-type material. N-type material is silicon doped with phosphorus, which has an excess of electrons.
TOPCon N-Type photovoltaic cells have several advantages over classic PERC photovoltaic cells:
- Higher conversion efficiency and rated power. The efficiency of N-Type TOPCon photovoltaic cells can reach more than 23%, while the efficiency of PERC cells is around 20%.
- Zero risk of light-induced degradation (LID) or elevated temperature (LeTID), increasing module reliability and lifespan.
- Lower temperature coefficient, which means less drop in performance when temperature increases.
- Bifacial capability, meaning they can generate electricity from both sides of the module.
These panels have 144 cells (6 × 24) assembled in two fields in a solid aluminum frame. It is equipped with special mechanically resistant tempered glass (3.2 mm) with high light transmission ability.
The waterproof output has integrated bypass diodes for reverse current protection and is highly resistant to extreme weather conditions such as high and low temperatures, frost, heavy rain or wind.
The panel also includes connection boxes with cables and MC4 connectors.
We usually have the panels in stock in Prague with fast delivery within the Czech Republic and Slovakia within two days. Due to the dimensions of the panel, only the entire pallet, i.e. 31 pieces, can be sent by shipping services. Smaller quantities can be collected by your own transport/in person.
BASIC SPECIFICATIONS
Panel type: monocrystalline
Number of cells: 144 (6 × 24)
Max. power (P max ): 585 W
Rated voltage (V mp ): 43.2 V
Rated current (I mp ): 13.54 A
Dimensions: 2279 × 1134 × 35 mm
Color: black
SVT subsidy code: SVT36726
