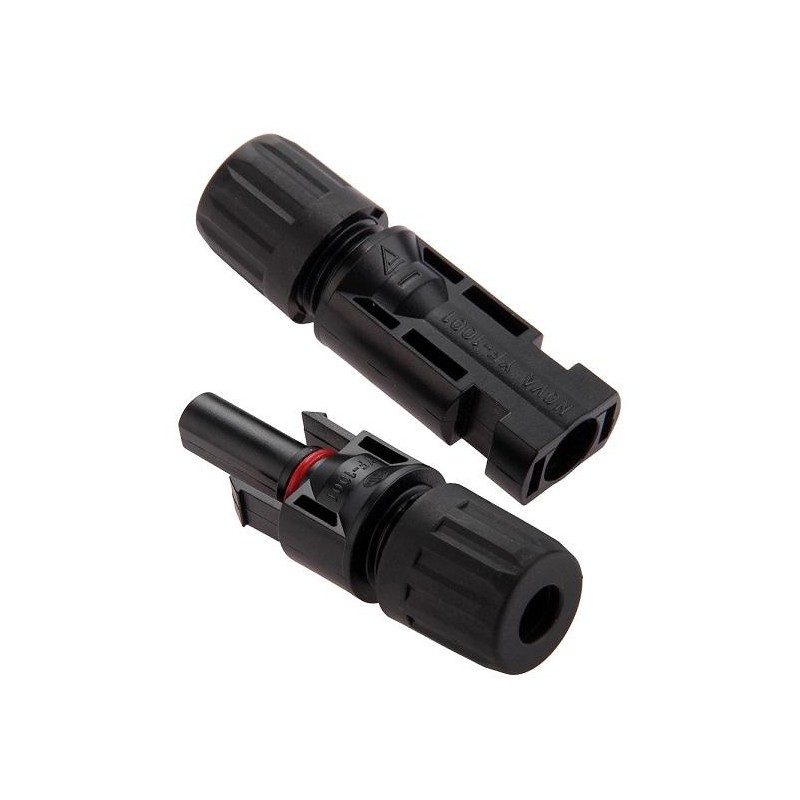

Solarmi MC4 installation connector MC4, crimp, 2-6 mm, (Male + Female set)

Xtend Solarmi MC4-P

Set of MC4 solar connectors (male + female) for installation on solar cables with cross-sections from 2.5 to 6 mm and a recommended current of max. 16 A continuously.

Use this installation tool to mount the connector on the cable.

Advantages of these MC4 connectors:

•

• Simple, fast and safe installation

• High mechanical resistance

• Designed for high currents and voltages (30 A, 1000 DC)

• Minimum contact resistance

• Robust encapsulation for high water resistance and moisture resistance

• Highest quality materials according to UL 94-V0 with a wide temperature range from -40 °C to 90 °C, resistance to weather conditions and UV radiation for applications with a lifespan of more than 30 years.

• Tested in TUV, ETL laboratories


BASIC SPECIFICATIONS

Connector type: MC4

Voltage: max. DC 1000 V

Recommended continuous current: 16 A

Contact resistance: <0.3 mOhm

For wire cross-sections: 2.5/4/6 mm ² (14/12/10AWG)

Safety class: Class II

Protection: IP65

Fire resistance: UL94-V0

Insulation material: PPO

Contact material: silver-plated copper

Operating temperature: -40 to +85 °C

Certification: TUV, ETL
