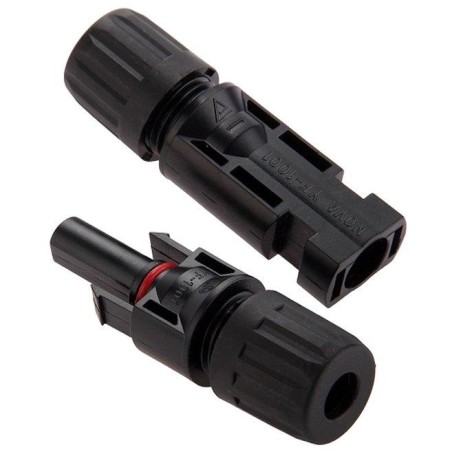

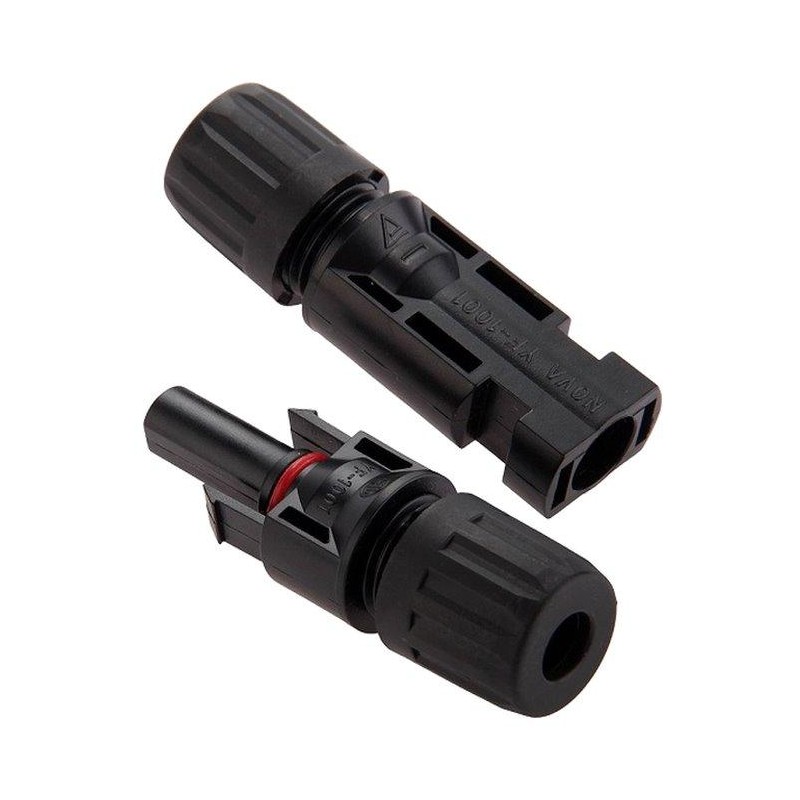

Solarmi MC4 installation connector MC4, crimp, 10mm, (Male + Female set)

Xtend Solarmi MC4-P-10

Set of MC4 solar connectors (male + female) for installing solar cables with 10 mm ² cores.

Use this installation tool to mount the connector on the cable.

Advantages of these MC4 connectors:

•

• Simple, fast and efficient assembly

• High mechanical resistance

• Designed for high currents and voltages (30 A, 1500 DC)

• Low contact resistance

• IP68 waterproof and dustproof construction

• Non-flammable material

• Highest quality materials according to UL 94-V0 with a wide temperature range from -40 °C to 85 °C, resistance to weather conditions and UV radiation for long-term outdoor use

• Tested in TUV, ETL laboratories


BASIC SPECIFICATIONS

Connector type: MC4

Voltage: max. DC 1500 V

Recommended continuous current: 30 A

Contact resistance: <0.35 mΩ

For conductor cross-sections: 10 mm ²

Safety class: Class II

Protection: IP68

Flame resistance: UL94-V0

Insulation material: M-PPE

Contact material: copper alloy + tin plating

Operating temperature: -40°C to 85°C

Certification: TUV, ETL
