XtendLan Offgrid 24/48AT20AGM (equipped box)

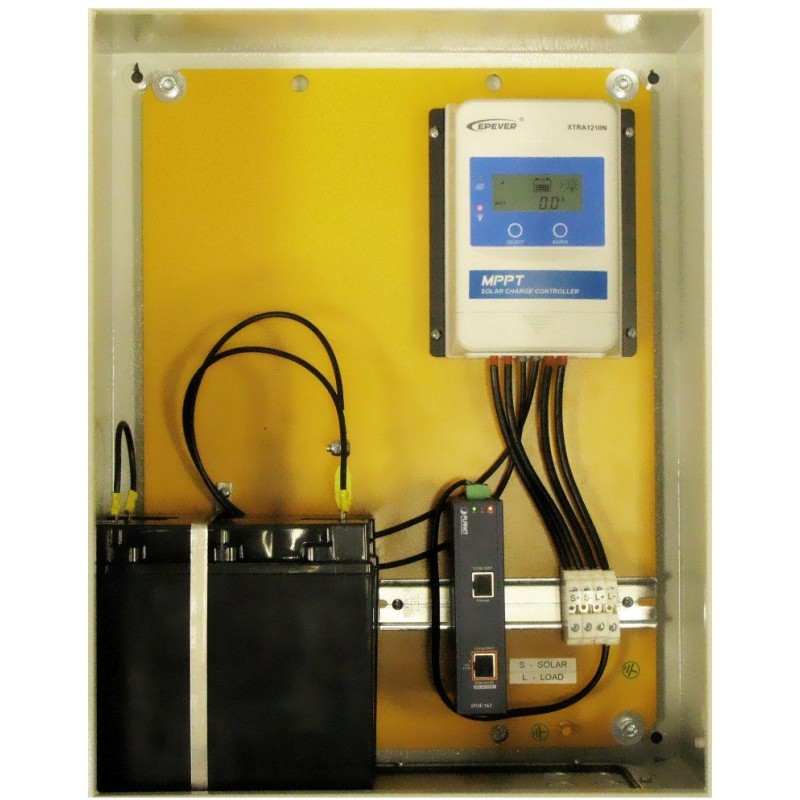

Outdoor waterproof box including pole mount . The box is equipped with everything needed to power the device in places without an electrical connection .
This island power supply is designed for 24 V or 802.3af/at 48 V PoE systems , such as powering outdoor elements such as IP cameras, LTE/Wi-Fi connections, etc. The box is equipped with PG11 glands.
The box can be supplemented with solar panels or a source powered by a street lamp. Consult us for a suitable source and solar panels.
The main advantage of this fitted box is the use of traction gel batteries of the OTL series and an industrial injector for power supply via Ethernet cable . This is a sealed lead-acid battery in VRLA design. It is a design in which the internal pressure is regulated using valves (VRLA - valve regulated lead acid = valve-controlled lead-acid batteries). GEL technology means that the battery does not contain electrolyte in a liquid state . The electrolyte is solidified in a hybrid gel (combination with AGM), and is thus firmly bound in the bowels of the battery cells, which eliminates its leakage . The extra strong cell grid ensures high cyclic resistance of the battery.
The EPsolar solar controller used also guarantees long service life in various weather conditions.
The total battery capacity used is 480 Wh, which is sufficient to power a device with a power consumption of 20 W for 20 hours.
BASIC SPECIFICATIONS
Switchboard (WE-402150)
Protection level: IP66
Dimensions: 500 × 400 × 210 mm
Door seal: polyurethane foam
Color: gray, RAL7032
Battery (GOOWEI ENERGY OTL20-12) (2×)
Technology: VRLA GEL (lead-acid battery)
Voltage: 12V
Capacity: 20Ah
Operating temperature range: -15 to +40 °C
Number of operating cycles: approximately 800 cycles
Dimensions: 181 × 167 × 77 mm
Controller (EPsolar XTRA1210-XDS1)
Rated system voltage: 12/24 V DC or auto
Battery input voltage range: 8-32V
Rated charge/discharge current: 10/10 A
Max. PV open circuit voltage: 100 V (92 V at approx. 25 °C)
MPPT efficiency: ≥ 99.5%
Dimensions: 175 × 143 × 48 mm
Weight: 0.57 kg
PoE injector Planet IPOE-162
Interface: 2x RJ-45 10/100/1000 Mbps: 1x Data input, 1x PoE (Data + Power) output
Total power output: up to 30 W, IEEE 802.3at
Port load capacity: up to 30 W
Power supply: 24–48 V DC/24 V AC (power supply not included)
Operating temperature: -40 to +75 °C
Dimensions: 135 × 87.8 × 32 mm
Weight: 473g
Unequipped switchboard:
This set consists of products under the following codes:
SOPGWL0017 - Solar cable 1500V/25A, 1m (cross-section 2x 4mm)
ELEGWL0018 - RSA terminal block is designed for connecting small and low voltage electrical circuits
ELEGWL0019 - End capRSA type terminal block
ELEGWL0022 - Crimping sleeve DI 6-12 with insulation
NETXTE7150 - Pole mounting kit for distribution board
ELEGWL0005 - Fuse MEGA, 100A, M8
ELEGWL0016 - DIN rail for mounting modular devices
NETPLA1705 - Planet IPOE-162 PoE injector IEEE802.3at, 30W, IP30, 12-48VDC
NETXTE3483 - Wall-mounted distribution board, 400x210x500, IP66, mounting plate, gray
NPCGWL0003 - DC cable for battery connection, 15cm, 2x M6 eyelets
NPCGWL0006 - DC connection cable, 60cm, M6 eyelet - female connector
NPOWAC0004 - Cable gland Pg11
SOPGWL0064 - Solar MPPT controller 12/24 V
UPSGOE0007 - Lead-acid 12V, 20Ah battery in VRLA GEL design designed for deep discharge and cyclic stress
