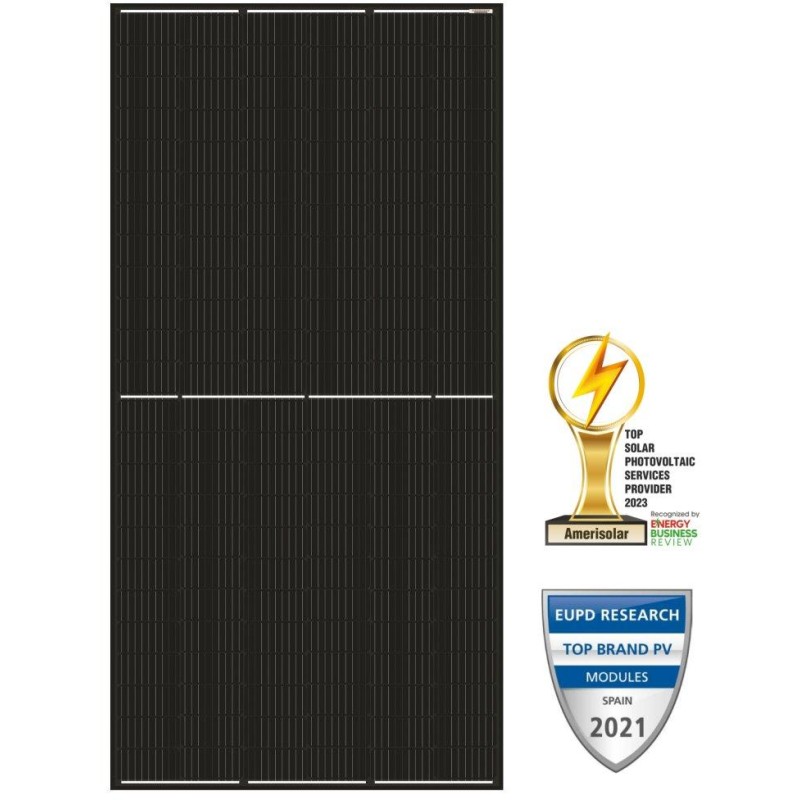

Xtend Solarmi AS-7M144-HC-B-550
Precisely manufactured monocrystalline solar panel with a power of 550 Wp and an efficiency of up to 21.28% . The panel is suitable not only in conjunction with microinverters for GridFree systems , but also for larger installations. The black frame with a black base looks really great on any roof.
A high-quality solar panel with a 30-year manufacturer's performance guarantee . More information can be found below in the related documents.
Highly efficient monocrystalline panels in dimensions of 2279 x 1134 x 35 mm at a favorable price for a quick return on investment. In addition, all supplied panels have a positive tolerance of nominal power.
This solar panel is in the list of products of the New Green Savings program (code: SVT31432)
PERC (Passivated Emitter and Rear Cell) technology
PERC solar cells have a passivated backside of the cell that is able to absorb light that can be used to generate electricity. This technology allows for high conversion efficiency. This results in better power-to-area ratio and peak performance under operating conditions.
These panels have 144 cells assembled in two fields in a solid aluminum frame. It is equipped with special mechanically resistant tempered glass (3.2 mm) with high light transmission ability.
The waterproof output has integrated bypass diodes for reverse current protection and is highly resistant to extreme weather conditions such as high and low temperatures, frost, heavy rain or wind.
The panel also includes connection boxes with cables and MC4 connectors.
We usually have the panels in stock in Prague with fast delivery within the Czech Republic and Slovakia within two days. Due to the dimensions of the panel, only the entire pallet, i.e. 31 pieces, can be sent by shipping services. Smaller quantities can be collected by your own transport/in person.
BASIC SPECIFICATIONS
Panel type: monocrystalline
Number of cells: 144 [2 x (12 x 6)]
Max. power (P max ): 550 W
Rated voltage (V mp ): 41.8 V
Rated current (I mp ): 13.16 A
Dimensions: 2279 x 1134 x 35 mm
Color: black
SVT subsidy code: SVT31432
