PLANET FTP Cat6a 500m

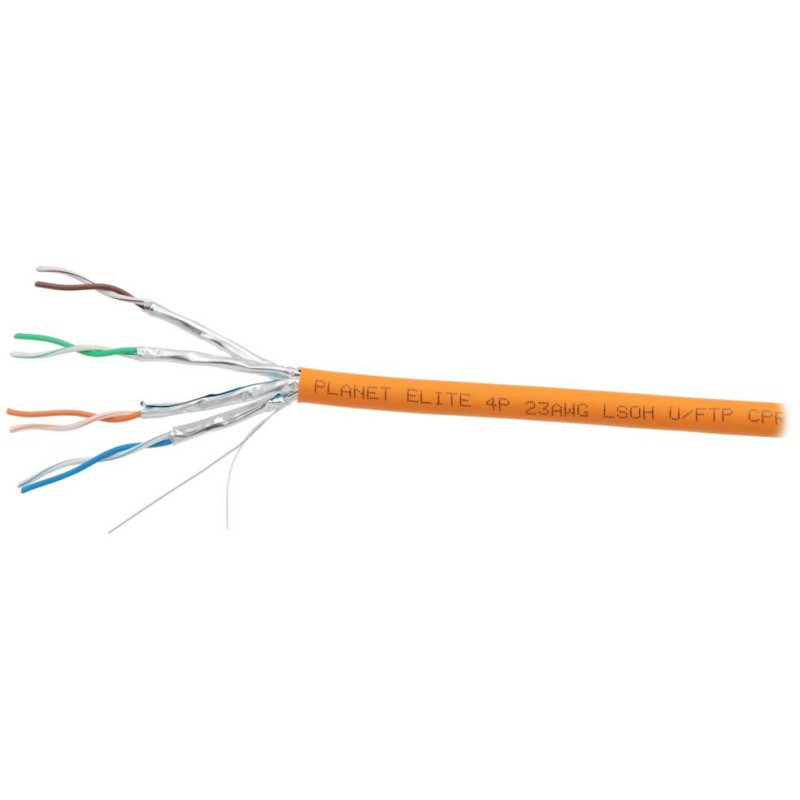

Category Cat6A cable, class EA, 500 MHz, 4 pairs, wire, FTP , each pair is shielded separately, ripcord, ground wire, packaging 500 m on a wooden drum , orange color, price per package.
Cable for implementing Gigabit 1000 Base-T, 2G FC-Base-T and 10Gbit Ethernet 10G Base-T networks and Cat6a/Class EA applications up to 500 MHz.
BASIC SPECIFICATIONS
Mechanical parameters:
Number of pairs: 4
Conductor: AWG 23, Cu (copper), wire
Wire insulation: PE (polyethylene)
Shielding: each pair in separate shielding (Al foil)
Outer sheath insulation: LS0H (LSZH)
Packaging: wooden drum of 500 m
Printing: meterial, industry standards
Color marking: on all wires, outer insulation orange
Installation temperature: -30 to +50 °C
Electrical parameters:
Impedance: 100 ± 15Ω
DC resistance max: 75 Ω/km
Unbalanced capacitance (pairs to ground) max: 160 pF/100m
Signal propagation speed: 0.74 c
Fulfilled norms & standards:
ČSN EN 50267-2-2, ČSN EN 50267-2-3 • acidity of gases produced during combustion
ČSN EN 61034-2 • smoke density
ČSN EN 60332-1-2 • non-flammability/flame propagation of the cable
ISO/IEC 11801 • requirements and design of structured cabling
TIA-568-C.2 • technical requirements (performance and cable quality)
Other downloads
| ELECTRICAL CHARACTERISTICS at +20 °C |
|---|
| DC resistance | max. 75 Ω/km |
| Capacity imbalance | 160pF/100m |
| Characteristic impedance | 100 ± 15Ω |
| Speed of propagation | approx. 74% |
Frequency
(MHz) | RL
≥ dB | Attenuation (ATT)
≤ dB/100m | NEXT
≥ dB | PSNEXT
≥ dB | ter;padding:12px;background-color:#d9d9d9;">ELFEXT
≥ dB/100m PSELFEXT
≥ dB/100m | PSAACRF
≥ dB |
|---|
| 1 | 20.0 | 2.1 | 75.3 | 72.3 | 67.8 | 64.8 | 67.0 |
| 4 | 23.0 | 3.8 | 66.3 | 63.3 | 55.8 | 52.8 | 66.2 |
| 10 | 25.0 | 5.9 | 60.3 | 57.3 | 43.9 | 44.8 | 58.2 |
| 16 | 25.0 | 7.5 | 57.2 | 54.2 | 43.7 | 40.9 | 54.1 |
| 31.2 | 23.6 | 10.5 | 52.9 | 49.9 | 37.9 | 34.9 | 48.3 |
| 62.5 | 21.5 | 15.4 | 48.4 | 45.4 | 31.9 | 28.9 | 42.3 |
| 100 | 20.1 | 19.1 | 45.3 | 42.3 | 27.8 | 24.8 | 38.2 |
| 200 | 18.0 | 27.6 | 40.8 | 37.8 | 22.0 | 19.0 | 32.2 |
| 250 | 17.3 | 31.1 | 39.3 | 36.3 | 20.0 | 17.0 | 30.2 |
| 300 | 17.3 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 28.7 |
| 500 | 17.3 | 45.3 | 34.8 | 31.8 | 13.8 | 10.8 | 24.2 |
