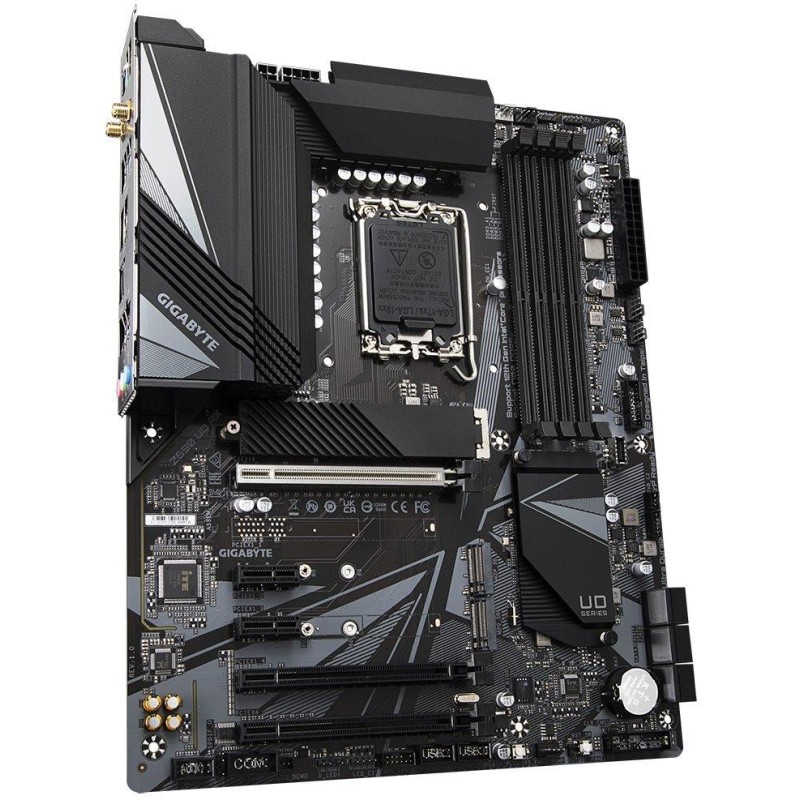

GIGABYTE Z690 UD AX
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 12th and 13th generation Intel Core i5/ i7/ i9 processors
LGA1700 socket
Chipset
Intel Z690
Memory
4x DDR5 memory slots, support up to 192 GB
DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 4800/ 4000MHz support
Dual-channel memory architecture
Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16
ECC memory support (non-ECC mode), 1Rx8/2Rx8
Intel Extreme Memory Profile (XMP) support
Slots
1x PCIe 5.0 x16 slot
1x PCIe 3.0 x16 slot (supports x4 mode)
1x PCIe 3.0 x16 slot (supports x1 mode)
2x PCIe 3.0 x1 slots
Graphic arts
1x DisplayPort port, supporting max. resolution 4096 x 2304 at 60 Hz
1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz
Multi-GPU
Support for AMD Quad-GPU CrossFire and 2-Way CrossFire technology
Storage
Intel CPU
1x M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 4.0 x4/x2 mode)
Intel Z690 chipset
2x M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4/x2 mode)
6x SATA 6Gb/s ports
RAID 0, RAID 1, RAID 5 and RAID 10 support
Intel Optane technology support
USB
1x USB 3.2 Gen2x2 Type-C port on the back panel
1x USB 3.2 Gen1 Type C port available via internal USB connector
1x USB 3.2 Gen2 type A port on the back panel
6x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)
8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek Codec
2/4/5.1/7.1 channel High Definition Audio
S/PDIF output support
HIND
1x Realtek 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 6 AX201
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band (2.4 GHz, 5 GHz, 6 GHz)
Data transfer speed up to 2.4 Gbps
Bluetooth 5.2
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan connector
1x CPU water cooling fan connector
3x system fan connector
1x system fan/water cooling pump connector
2x addressable LED strip connector
2x RGB LED strip connector
3x M.2 slots, M Key
6x SATA 6Gb/s connector
1x front panel connector
1x front panel audio connector
1x S/PDIF output connector
1x USB 3.2 Gen1 Type-C connector
1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
2x USB 2.0 connector (supports 4x USB 2.0 port)
1x serial port connector
2x Thunderbolt AIC connector
1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
1x Reset button
1x Reset jumper
1x Q-Flash Plus button
1x Clear CMOS jumper
Ports on the backm panel
1x PS/2 combo port for keyboard and mouse
2x Wi-Fi antenna connector
1x DisplayPort
1x HDMI
1x USB 3.2 Gen2x2 Type-C
1x USB 3.2 Gen2 (USB 3.1 Gen2)
4x USB 3.2 Gen1 (USB 3.0)
4x USB 2.0
1x RJ-45
3x audio jacks
Dimensions
30.5 x 24.4 cm
ATX format
