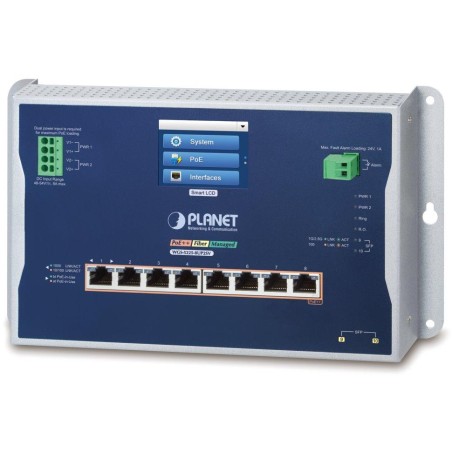

PLANET WGS-5225-8UP2SV
Manageable industrial PoE++ switch with advanced L2+/L4 switching and security + L3 software VLAN static routing (IPv4 and IPv6). For accelerated management, it is equipped with a 2.4" color touch display , which allows for simple administration. This saves time on installation and possible configuration changes.
8x 10/100/1000 Base-T RJ-45 with PoE++ power supply 802.3bt, 2x 100/1000/2500 Base-X SFP , switch capacity 26 Gbps, throughput 19.345 Mpps (64 byte packets), 8k MAC addresses, 4 Mb buffer, 9k JumboFrame support, PoE++ power supply 802.3bt, up to 95 W/port, total PoE budget up to 720 W (dual power supply with the same voltage required).
Wall installation, metal design IP30 , construction is resistant to falls and vibrations, ESD protection up to 6 kV, fanless, alarm output (2pin), dual power supply DC 48-54 V (adapter not included).
Web/Telnet/SNMP(v1/v2c), SSHv2, TLS v1.2, SNMPv3 , L3 static routing (L2+), VLAN, 802.1Q, ACL filter, QoS, bandwidth manager, control according to IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p filters, LACP line aggregation, IGMP v1/v2/v3, 802.1x, RADIUS, TACACS+, Modbus TCP, ERPS Ring Data Recovery time <10ms (ITU-T G.8032), support for 1588 PTP v2 Transparent Clock , support for ONVIF for cooperation with video IP surveillance devices.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x 10/100/1000 Base-T RJ-45, 2x 100/1000/2500 Base-X SFP
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 26 Gbps bus, operational 19.345 Mpps (64B)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: wall-mounted
Power supply: DC 48-54 V, dual, total power consumption up to 752 W (14.72 W without PoE) (power supply not included)
Protection: ESD up to 6 kV
Operating temperature: -20 to +70 °C, humidity up to 95%
Dimensions: 245 x 140 x 36 mm
Weight: 1.299 kg
PoE function:
Total power output: 720W (dual power), 802.3af, 802.3at, 802.3bt
Number of injectors: 8x up to 95 W (UPoE (PoH))
Power type: End-span, Mid-span, 802.3bt/UPoE, Force mode
Advanced features:
PD Alive Check
integrated scheduler for scheduled shutdown of powered end devices (PoE schedule)
detection of activity of powered devices using ICMP
power control for each PoE port
possibility of defining priority and power limit
automatic detection of powered device (PD)
PoE Extend mode
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
Administration functions:
Management: Telnet, Web, SSH v2, TLS v1.2, SNMP v1/v2c/v3
ZestAccess control: ACL protocol based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces, IPv4/IPv6
ACL filter and bonding:
IP ACL, traffic filtering by IP address and other attributes
MAC ACL, traffic filtering by MAC address and other attributes
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags (VLAN tag)
VLAN support:
IEEE 802.1Q
up to 4k VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling (802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol, by VLAN
Port mirroring: RX, TX, RX+TX, many to one
Link Aggregation: IEEE 802.3ad LACP/Static Trunk, 4 ports in 6 groups
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, MAC
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM - Digital Diagnostic Monitor)
