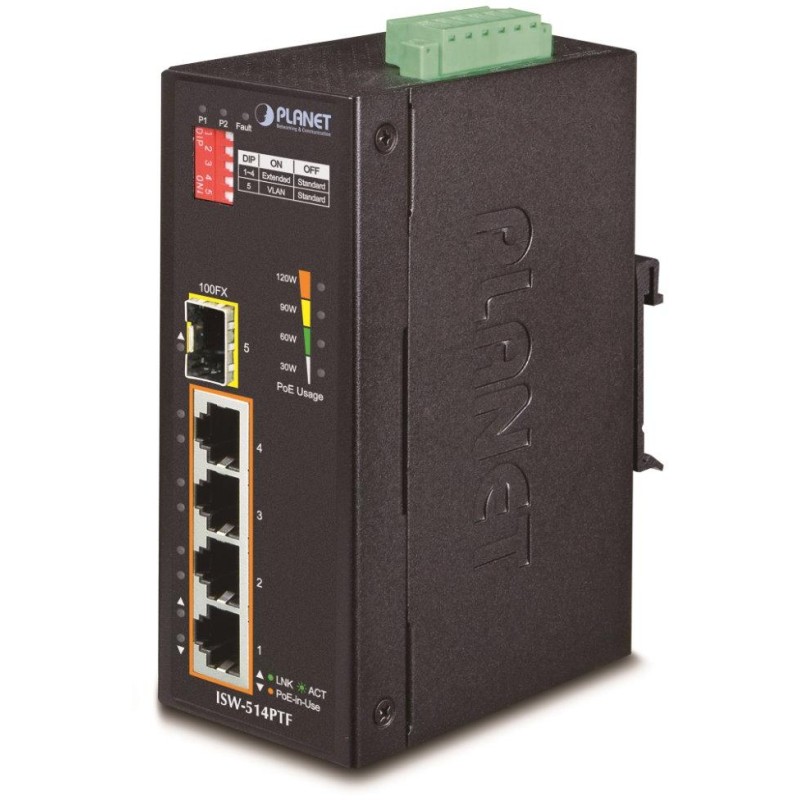

PLANET ISW-514PTF
Switch for industrial applications 4x 10/100Base-TX including PoE+ IEEE 802.3at injectors + 1x 100FX (SFP slot) , PoE power up to 120 W.
Automatic detection of 10/100Mbps, full duplex, 2k MAC addresses, straight/cross cable detection. Possibility of redundant power supply 12-48 V , alarm output in case of failure.
Aluminum housing, IP40 protection level, extended operating temperature range -40 to 75 °C . Mounting on DIN rail or directly on the wall.
This model allows you to switch between Standard, VLAN and Extend operating modes. Standard mode offers 10/100 Mbps transmission speed over a distance of 100 m with 30 W PoE. VLAN mode isolates individual ports, helping to prevent IP camera multicasts from interfering with each other. In Extend mode, the transmission distance can be extended up to 250 m with 10 Mbps and 25 W PoE.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The ISW series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications or camera systems).
The version with PoE IEEE 802.3at allows you to directly power up to 4 end devices, making it an ideal element for applications with reduced power supply options for end devices!
BASIC SPECIFICATIONS
Physical properties:
Ports: 4 x RJ-45 10/100Base-TX, 1 x SFP 100Base-FX
Memory: 2k MAC addresses
Throughput: 1 Gbps bus, operational 0.74 Mpps (64b)
Design: DIN rail, wall-mounted
Power supply: 12-48 V DC redundant, connection possible from two different sources (not included)
Protection: ESD up to 5 kV, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting), alarm output activated in case of power failure
Operating temperature: -40°C to 75°C
Dimensions: 135 x 85.1 x 50 mm
Weight: 598g
POE function:
Total power output: 120 W at 48 V DC, 90 W at 24 V DC, 60 W at 12 V DC, IEEE 802.3at
Number of injectors: 4 x up to 36 W
Power supply type: End-span
Advanced features: Automatic detection of powered device
Extended mode with a range of up to 250 m
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Zand information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
