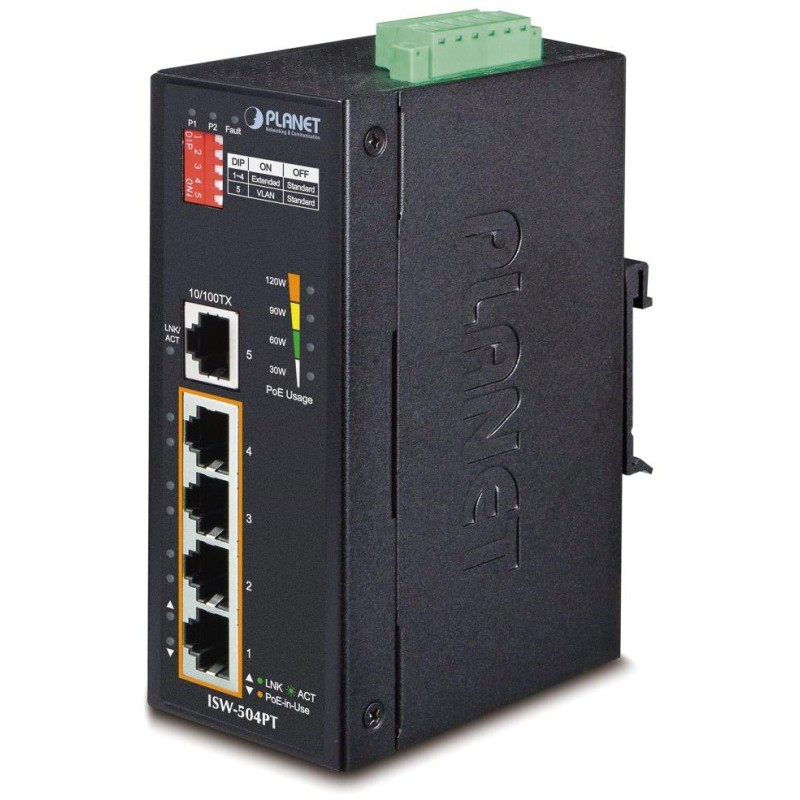

PLANET ISW-504PT v3
Industrial PoE+ switch (802.3af/at), 4x RJ-45 10/100 Base-TX ports with PoE+ injectors (up to 36 W/port), 1x RJ-45 10/100 Base-TX (without PoE), total power 120 W (at 48 V DC power supply).
Unmanaged, support for 802.1Q VLAN and CSMA/CD protocol, Flow Control (802.3x pause frame for full duplex, Back pressure for half duplex), redundant DC 12-48 V power supply , IP40 protection, metal housing, operating temperature -40 to +75 °C , fanless (without fans), LED indication of PoE usage, DIP switch (Standard/VLAN/Extend), alarm output (power failure), ESD surge protection up to 5 kV, DIN rail or wall mounting, upgraded version v3 .
Version v3: increased PoE output to 36 W/port (802.3at), max. 120 W PoE budget, IP30 to IP40 protection, increased power supply range to 12-48 V, added DIP switch (Standard/VLAN/Extend modes), side mounting option
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks . Extended temperature range version of the series switches.
The ISW series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows you to directly power up to 4 end devices according to the IEEE 802.3af/at standard, making it an ideal element for applications with reduced power supply options for end devices!
The Switch has a manual mode switch:
- Standard - the switch powers devices at a distance of max. 100 m.
- VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be prevented.
- Extend - the switch powers devices up to 250 m with reduced throughput of 10 Mbps per port (supports power supply up to 25 W)
BASIC SPECIFICATIONS
Physical properties:
Ports: 5x RJ-45 port 10/100 Base-TX
Memory: 1K MAC addresses, JumboFrame 1.5kB
Throughput: 1 Gbps bus, operational 0.74 Mpps (64 B)
Design: DIN rail, wall-mounted
Power supply: DC 12-48 V, redundant, power consumption up to 3.7 W (max. 136.8 W at full PoE load), connection possible from two different sources (not included in the package)
Protection: ESD up to 5 kV DC, reverse polarity protection
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 x 85.1 x 50 mm
Weight: 596g
PoE function:
Total power output: max. 120 W (depending on power supply), IEEE 802.3at/af
120 W at 48 V DC power supply
90 W at 24 V DC power supply
60 W at DC 12 V power supply
Number of injectors: 4x up to 36 W
Power supply type: End-span
protection (of a circuit) against interference between ports
automatic detection of powered device
Extended mode 10 Mbps with a range of up to 250 m
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
