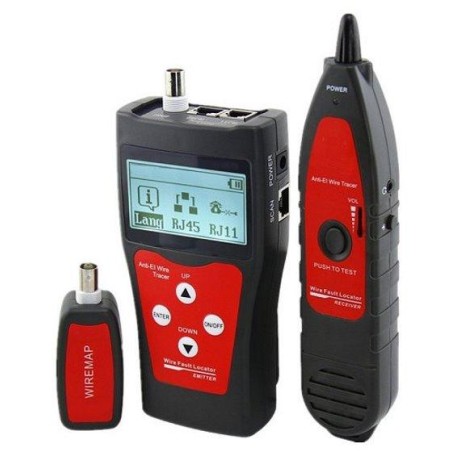

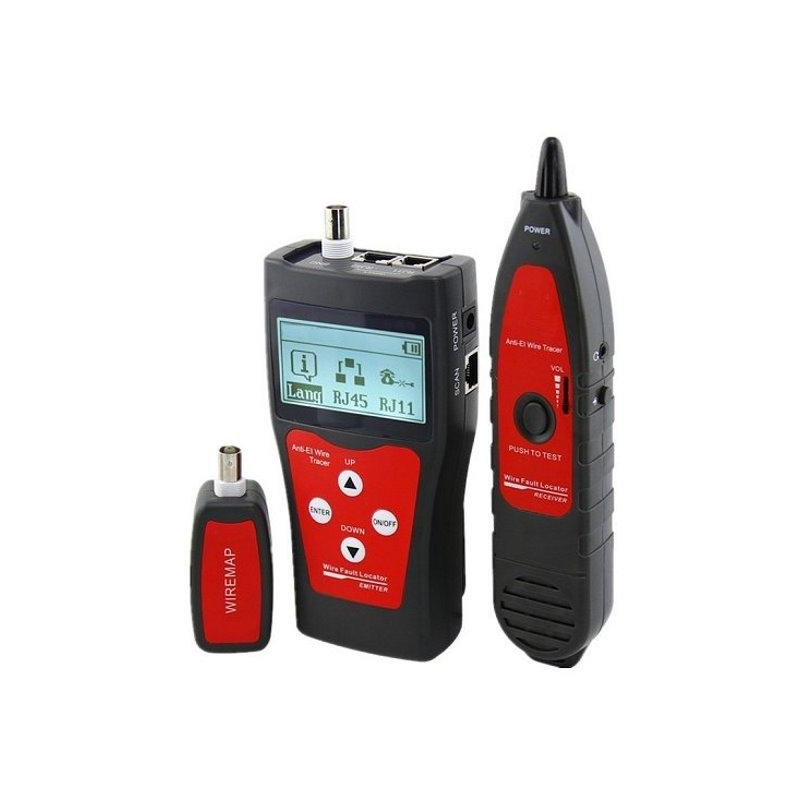

XtendLan Tester STP+PSTN+coax+USB, LCD display, line length measurement, probe

XtendLan LANTESTLCD76-SOUND

Tester for UTP/STP (RJ-45), coaxial (BNC) and telephone (RJ-11) lines equipped with a detection probe for searching for cable connections. Ohmic measurement methods, LCD display.

BASIC SPECIFICATIONS

Display: LCD, 128 x 64 pixels

Function: Auto off

Battery: 9V

Working temperature: -10 to 60 °C

Tester dimensions: 175 x 80 x 43 mm

Probe dimensions: 218 x 42 x 29 mm

Loop dimensions: 107 x 30 x 24 mm

Type of measured cables:

UTP/STP typically CAT5, CAT5E, CAT6

coaxial cables

USB connection cables

telephone and other single-pair cables

Types of measurements:

Wire length measurement, reflection method

Open circuit/short circuit test with fault location identification

Cable wiring diagram – only for RJ45 ports with loopback

Finding cable lines with a probe

Cable identification

Length measurement accuracy:

for an unknown cable after performing a previous calibration on a sample of at least 10 m in length: 2% of the length and +/- 0.5 m

for CAT5E cables: 3% of the length and +/- 0.5 m

---
