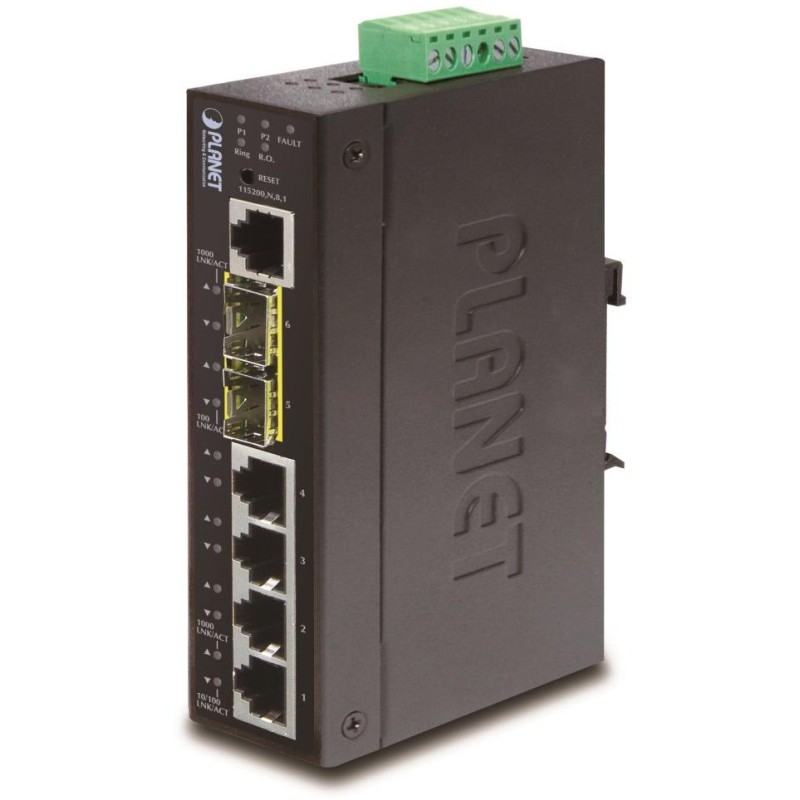

PLANET IGS-5225-4T2S
Industrial manageable L3 switch 4x 100/1000Base-T, 2x SFP 100/1000Base-X (SFP-DDM diagnostics), Alarm-out.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard.
Redundant power supply 2x DC, ESD surge protection, IP30 protection, operating temperature -40~75°C.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 32 rules and 8 VLAN interfaces.
In addition to the well-known Spanning Tree method (whose recovery time is in the order of seconds), the IGS-5225-4T2S is equipped with a specialized ERPS (Ethernet Ring Protection Switching) function for redundancy, which has a recovery time and new path finding time of up to 10 ms.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX, 1 x RJ-45 (RS-232) console serial port
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 12 Gbps bus, operational 8.9 Mpps (64B)
Transmission support: JumboFrame 9KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: 12-48 V DC dual with 24 V AC, total power consumption up to 8.5 W (power supply not included)
Protection: ESD air up to 8 kV, contact up to 6 kV
Operating temperature: -40 to 75°C
Dimensions: 135 x 87 x 32 mm
Weight: 456g
Administration functions:
Management: Console, Telnet, Web, SNMP SSH, SSL, TLS, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 123 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 500 Kb - 1000 Mbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN /> Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, one to one
Link aggregation: IEEE 802.3ad LACP, up to 4 groups of 4 ports
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS/TACACS+ authorization, IP+MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
