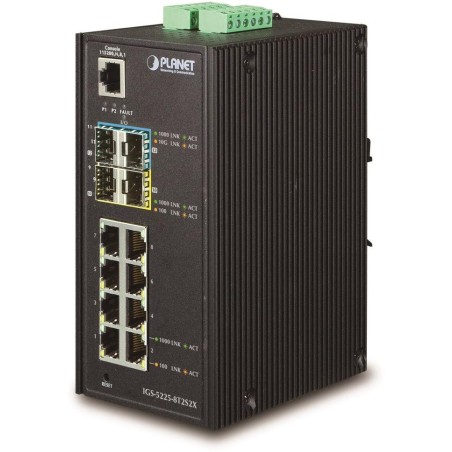

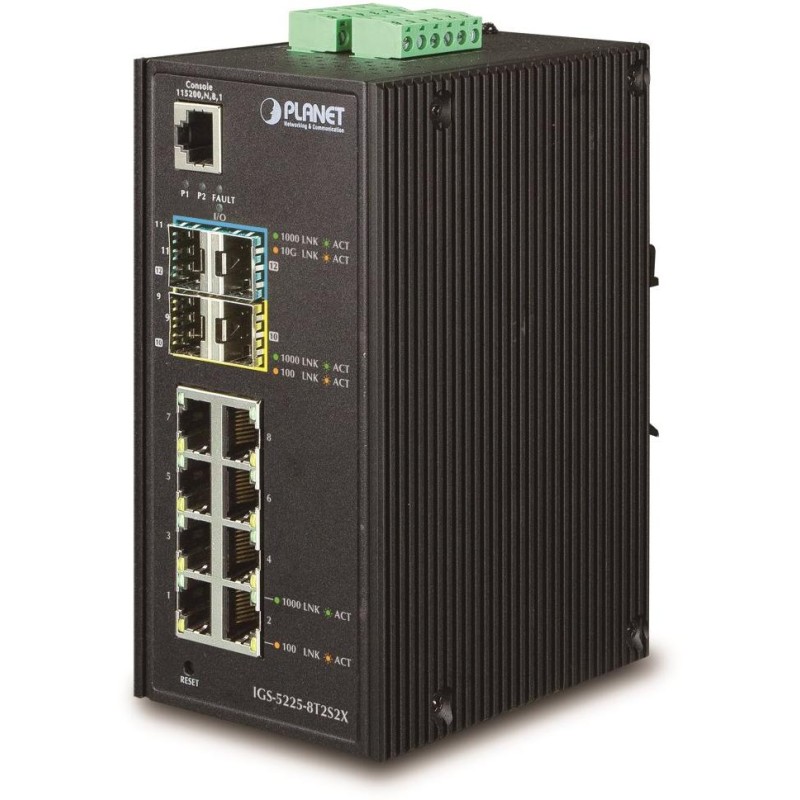

Planet IGS-5225-8T2S2X
Industrial managed L3 switch 8x 1000Base-T, 2x SFP+ 1000/2500/10Gbase-X, 2x SFP 100/1000/2500Base-X, 2x DI/DO. MODBUS.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP Snooping.
SFP-DDM diagnostics. Redundant power supply, ESD surge protection, IP30 protection, operating temperature -40~75°C.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions thereof). L3 routing for up to 128 rules and VLAN interfaces using the OSPFv2 routing protocol are supported.
IGS series switches are resistant to shock and vibration, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX (100BASE-FX and 2500BASE-X SFP compatible), 2 x SFP+ 10GbBASE-SR/LR (1000BASE-SX/LX/BX and 2500BASE-X compatible), 1 x RJ-45 serial console port
Memory: 32k MAC addresses, 16Mbit buffer
Throughput: 60 Gbps bus, operational 44.642 Mpps (64 bits)
Transmission support: JumboFrame 10K
Design: DIN rail, wall-mounted
Power supply: 12 - 48 V DC, 24 V AC, redundant, connection possible from two different sources, own power consumption up to 16.36 W (power supply not included)
Protection: ESD up to 6 kV DC
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 152 x 107 x 72 mm
Weight: 1070g
Administration functions:
Management: Console, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 512 rules
L3 static routing: up to 128 rules, 128 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8-level, traffic prioritization by port, DSCP/ToS, 802.1p or 802.1Q tags
Port shaper settings in the range of 1 kb - 1 Gbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
Spanning Tree Protocol: />
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link Aggregation: IEEE 802.3ad LACP, 8 ports in 6 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
