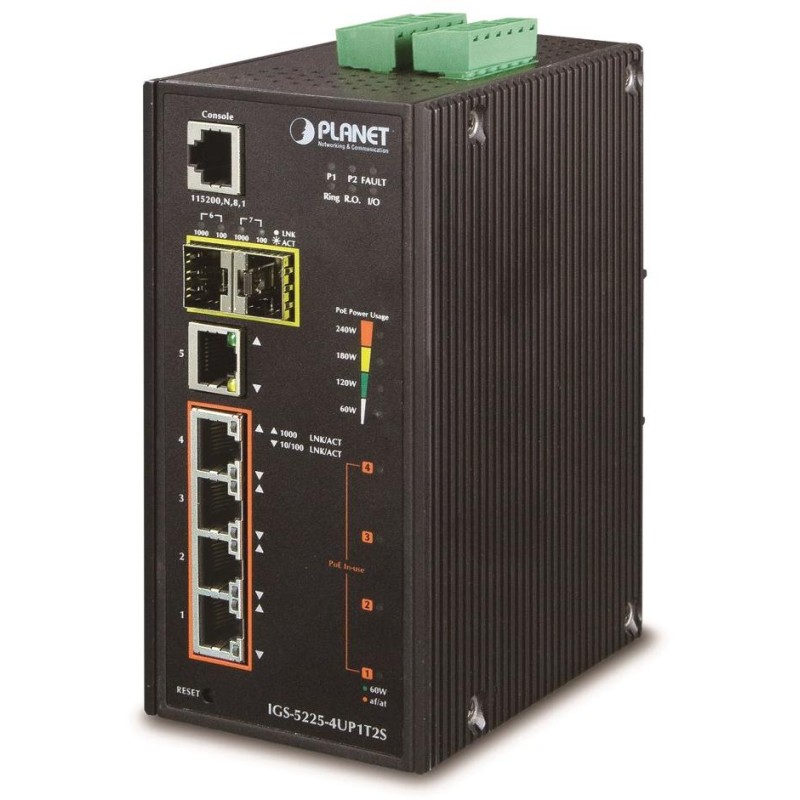

Planet IGS-5225-4UP1T2S
Industrial manageable L2/L3 PoE switch with 5 1000Base-T ports, including 4x UltraPoE injectors IEEE 802.3at, 2x SFP 100/1000Base-X (SFP-DDM diagnostics), 2x DI/DO, power supply up to 240 W.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree (ERPS), 802.3ad LACP link aggregation, Port shaper, QoS, DHCP Snooping.
Redundant power supply 2x DC 48~56V (higher voltage for higher PoE power), ESD surge protection, IP30 protection, operating temperature -40~75°C.
Gigabit managed switch operating at OSI layer 2 and 3. It has UltraPoE injectors according to IEEE 802.3at, is equipped with advanced features for use in wide area networks and backbone connections. Static routing, powerful QoS traffic management tools and security allow ISPs and network administrators to control and effectively manage network data.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 32 rules and 8 VLAN interfaces.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
BASIC SPECIFICATIONS
Physical properties:
Ports: 5 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX or 100BASE-FX, 1 x RJ-45 console serial port
Memory: 8k MAC addresses, 4 Mbit buffer
Throughput: 14 Gbps bus, operational 10.42 Mpps (64B)
Transmission support: Jumbo Frame 9 Kb
Design: DIN rail, wall-mounted
Power supply: redundant power supply, 48 - 56V DC (for PoE+ use 52 V and higher is required), total power consumption up to 282 W (power supply not included)
Protection: ESD up to 6 KV DC
Operating temperature: -40 - 75°C, 95% humidity
Dimensions: 152 x 107 x 72 mm
Weight: 1050g
Administration functions:
Management: console via RJ-45, Telnet, Web, SSHv2, SSL, TLS, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 123 entries
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: traffic prioritization according to 802.1p, 802.1Q and according to ToS/DSCP in IP packets, possibility of setting limits on packets sent per port and according to QoS rules
Port shaper settings in the range of 1 kb - 1 Gbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
Multicast VLAN
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 3 ports in 3 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS), TACACS+, IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
POE function:
Total power output: 240 W, IEEE 802.3af, IEEE 802.3at, Ultra PoE PSE
Number of injectors: 4 x up to 72 W
Power supply type: End-span, Mid-span, UPoE
Advanced features: integrated scheduler for scheduled shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
internal thermal protection
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
