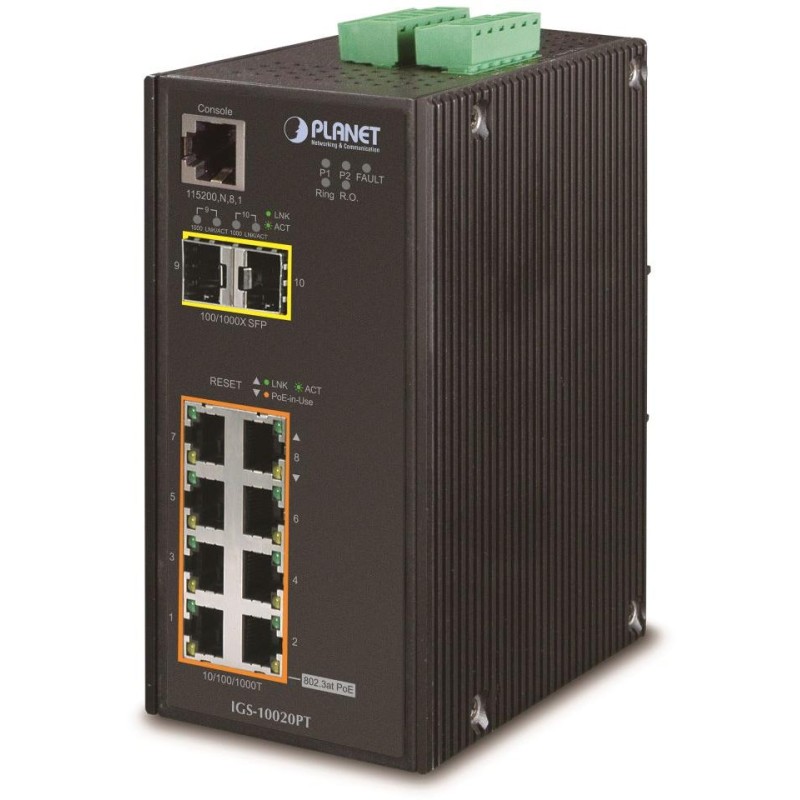

Planet IGS-10020PT industrial L3 switch, 8x1Gb, 2x2.5Gb SFP, 8x PoE 802.3at 240W, 48-54VDC, -40~75°C, IP30

PLANET IGS-10020PT

Industrial managed switch 8x 10/100/1000Base-T, 2x SFP 100/1000Base-X, including PoE IEEE 802.3at injectors, power up to 240 W.

IPv6 support, Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP snooping, LLDP.

ONVIF, Alarm output in case of power failure, IP30 protection, aluminum housing, operating temperature -40~75°C. Surge protection ESD+EFT LAN and power ports up to 6 kV. DIN rail mounting or directly on the wall.

Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.

In addition to the well-known Spanning Tree method (whose recovery time is in the order of seconds), the IGS-10020PT is equipped with a specialized "Redundant ring" function for redundancy, which has a recovery time and new path finding time of up to 10 ms.

As a PoE switch, it allows you to directly power up to 8 end devices according to the IEEE 802.3at standard, making it an ideal element for applications with reduced power options.

The Cybersecurity Solution minimizes security risks, protects switch management, and enhances security at critical network points at no additional cost. It includes a range of features such as DHCP Snooping, IP Source Guard, and more.

Special internal ONVIF software allows you to scan the network to detect IP cameras, and is able to obtain information from the cameras about their operation and power supply.

Thanks to support for the Modbus TCP/IP protocol, it is possible to communicate with higher-level systems such as SCADA or HMI.

The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).

BASIC SPECIFICATIONS

Physical properties:

Ports: 8 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX, 1 x RJ-45 serial console port

Memory: 8k MAC addresses

Throughput: 20 Gbps bus, operational 14.8 Mpps

Transmission support: JumboFrame 9K

Design: DIN rail, wall-mounted

Power supply: 48-56 V DC power supply, max. consumption 207 W (power supply not included)

Protection: ESD up to 6 kV, EFT up to 6 kV

Operating temperature: -40°C - 75°C, humidity up to 95%

Dimensions: 152 x 107 x 72 mm

Weight: 1032g

Administration functions:

Management: console via RS232, Telnet, Web, SNMP v1, v2c, SSH/SSL

Access Control: IP and MAC based ACL protocol, up to 123 entries

QoS traffic prioritization: 8 levels, traffic prioritization according to 802.1pa according to ToS/DS in IP packet, possibility of setting limits on packets sent per port and according to QoS rules

Port shaper yes

VLAN support:

IEEE 802.1Q

up to 255 VLAN groups, up to 4094 VLAN IDs

Q-in-Q tunneling

Private VLAN Edge (PVE)

MAC-based VLAN

Protocol-based VLAN

Voice-based VLAN

Multicast VLAN

Spanning Tree Protocol:

STP protocol, IEEE 802.1d Spanning Tree protocol

RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol

MSTP protocol, IEEE 802.1s Rapid Spanning Tree protocol

Port mirroring: RX, TX, both

Link aggregation: IEEE 802.3ad LACP/static trunk, 8 ports in 5 groups

IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups

Authentication of connected devices: RADIUS, TACACS+, SNMP v3

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault

POE function:

Total power output: 240 W, IEEE 802.3at

Number of injectors: 8 x up to 26 W

Power supply type: End-span

Advanced features:

integrated scheduler for scheduled shutdown of powered end elements

internal thermal protection

automatic detection of powered devices

detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power

Industrial properties:

The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts

the device is vibration resistant (IEC-60068-2-6)

The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)

electrical safety according to CE EN-60950

EMC Electronic Compatibility (EMI):

ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment

EMC immunity requirements (EMS):

ČSN EN 55024 A1:2015 - Information technology equipment

ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment

ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD

ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields

ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT

ČSN EN 61000-4-5:2014 - Surge and overvoltage

ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields

ČSN EN 61000-4-8:2009 - Power frequency magnetic field

ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes

---

---

---

---

---

DIN rail mounting:

---

Wall mounting using the supplied frame:
