XtendLan Cable Tester with LCD, Cat5, Cat6, Cat7, UTP/STP, BNC PoE test, Ping, finder/probe

XtendLan LANTESTLCD8601S

Advanced tester for testing and diagnosing various types of cables/lines . It uses TDR (Time Domain Reflectometry) technology to accurately locate and identify faults in the line. The device is equipped with a large LCD display that displays all relevant information and supports multilingual settings. In addition, it is equipped with a built-in tone generator and port search function, making it ideal for testing network cables, telephone lines and video cables.

•

• The tester offers a wide range of functions for various types of testing and diagnostics.

• Tester for UTP/STP (RJ-45), coaxial (BNC) and telephone (RJ-11) lines.

• Ohmic measurement methods, including advanced PoE and PING response tests.

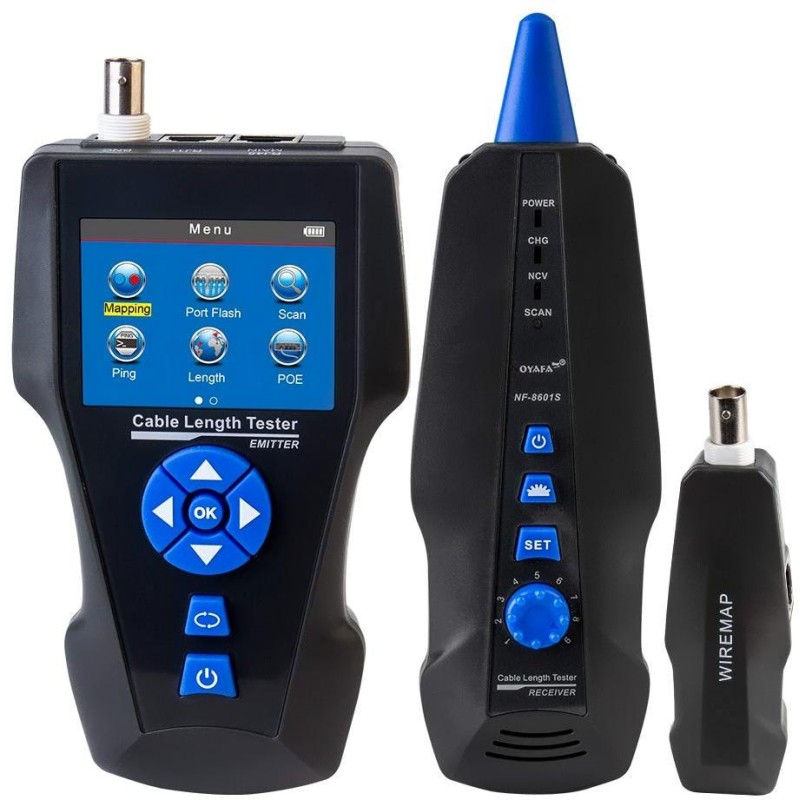

Equipment: detection probes for searching for cable connections, 1x counter loop, color LCD display

Type of measured cables:

•

• UTP/STP typically Cat5, Cat5E, Cat6 and Cat7

• Coaxial cables

• USB connection cables

• Telephone and other single-pair cables


Types of measurements:

•

• Measuring the length of conductors (reflection method)

• Test for disconnection, short circuit with identification of the fault location

• Cable wiring diagram (for RJ-45 ports with loopback only)

• Finding cable lines with a probe

• Cable identification

• Ping (ICMP) to the selected IP address

• Measuring PoE voltage levels on wires


Length measurement accuracy:

•

• For an unknown cable after previous calibration on a sample of at least 10 m length: 2% of the length and +/- 0.5 m

• For Cat5E cables: 3% of the length and +/- 0.5 m


BASIC SPECIFICATIONS

Display: LCD, color, 128 x 64 px

Battery: 3.7 V, Lion type, 1800 mAh

Memory card reader: microSD (TF) card slot - storage of records (cable connections, line lengths, PoE voltage on wires, etc.)

Working temperature: -10 to +60 °C

Tester dimensions: 173 x 92 x 34 mm

Probe dimensions: 183 x 58 x 35 mm

Loop dimensions: 106 x 32 x 30 mm
