Solarmi AC/DC circuit breaker 50A for photovoltaics, ABB CIRCUIT BREAKER S 201 C 50 NA, DC disconnector

Xtend Solarmi ABB S201-C50NA

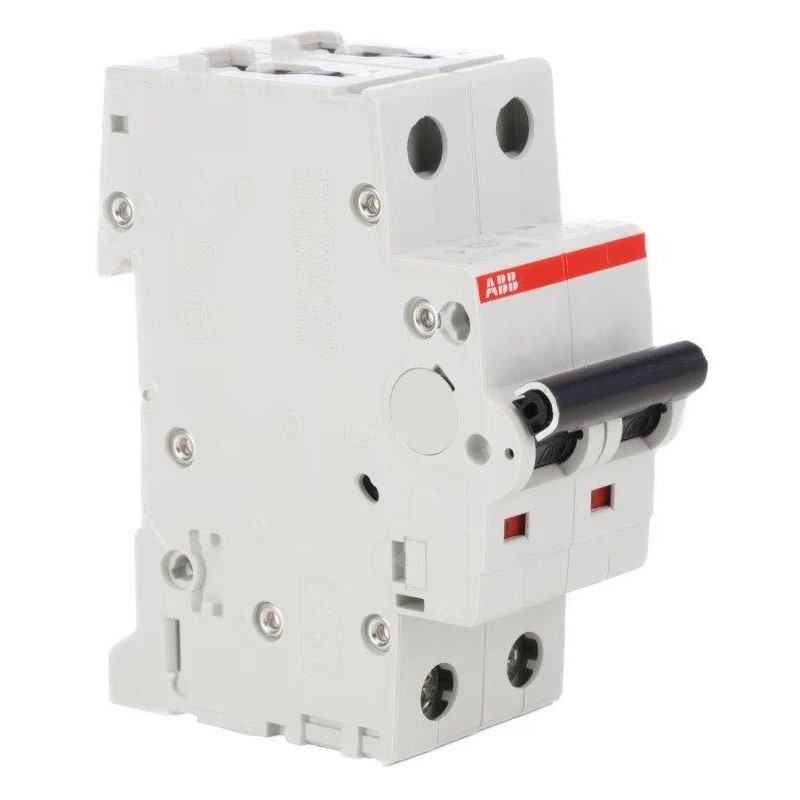

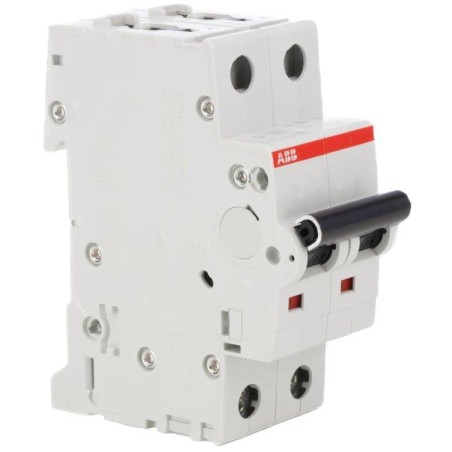

Modular AC/DC (50 A) circuit breaker S200 series (model S201-C50NA) with neutral disconnection. Characteristic C - Control and protection of circuits against overloads/short circuits and protection of resistive and inductive loads with low inrush current.

These circuit breakers have two different tripping mechanisms, a delayed thermal trip for overload protection and an electromechanical trip for short-circuit protection. All MCBs in the S200 product range comply with IEC/EN 60898-1, IEC/EN 60947-2 and UL1077 , allowing them to be used in residential, commercial and industrial applications.

•

• Use: household, commercial and industrial

• Catalog description: S201-C50NA Miniature Circuit Breaker - 1+NP - C - 50 A

• Contact Position Indicator (CPI)

• Possibility of connecting different wire cross-sections (up to 4 wires to one terminal)

• Double lifting cylindrical terminals for connecting conductors with a cross-section of 35 mm ²

• Terminal for connecting the busbar at the rear of the circuit breaker to ensure the installation of wires in front of the busbar

• Easy to snap onto DIN rail

• Possibility of retrofitting the circuit breaker with an auxiliary contact without the need to expand the installed width (from below)

• For 1 phase circuit breaker, up to 6 auxiliary contacts possible (3 on the right, 2 on the left, 1 on the bottom)


Connection capacity:

Busbar: 10 / 10 mm ²

Flexible with Ferrule: 0.75 to 25 mm ²

Flexible: 0.75 to 25 mm ²

Rigid: 0.75 to 35 mm ²

Stranded: 0.75 to 35 mm ²

BASIC SPECIFICATIONS

Trip characteristic: C

Rated voltage (U _r ): AC 230 V

Rated current (I _n ): 50 A

Rated short-circuit power (I _cn ): 6 kA

Rated ultimate short-circuit breaking capacity (I _cu ):

20kA (133VAC)

10kA (230VAC)

20kA (24VDC)

10kA (60VDC)

Protection: IP20 (IP40 housing)

Dimensions: 88 x 69 x 35 mm

Weight: 250g
