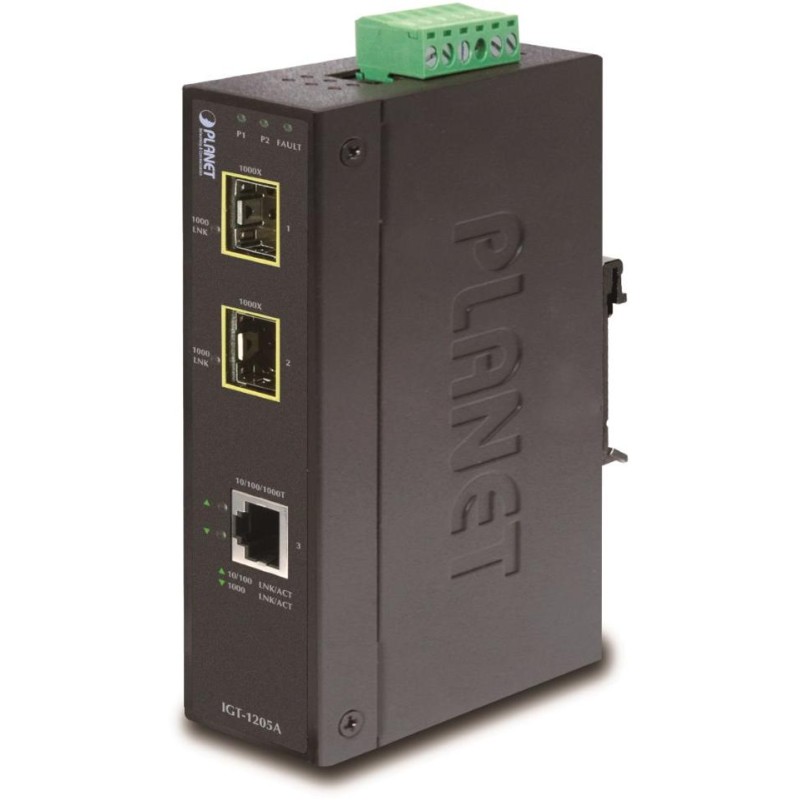

PLANET IGT-1205AT
Ethernet 1000Base-T to 100/1000Base-X optical converter with SPF slots for installing MFB and MGB modules, designed for industrial and FTTH applications.
Redundant power supply option in the range of 24V to 48V DC or 24V AC, IP30 protection, aluminum housing, extended operating temperature -40~75°C. ESD+EFT protection up to 6kV DC. DIN rail mounting or directly on the wall.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
BASIC SPECIFICATIONS
Physical properties:
Ports: 1 x RJ-45 10/100/1000Base-T, 1 x SFP 1000Base-SX/LX/BX
Transmission support: JumboFrame 9K
Design: DIN rail, wall-mounted
OAM support: no
Power supply: AC 24V or DC 12-48V, connection possible from two different sources (not included), total power consumption up to 4.8W
Protection: ESD up to 6KV DC, EFT up to 6KV DC, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40 to 75°C
Dimensions: 135 x 87 x 32mm
Weight: 505g
Can be installed in a chassis: no
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
prod/Planet/ISW-DINrail_small.jpg" alt="ISW-DINrail_small.jpg" />
Wall mounting using the supplied frame :
