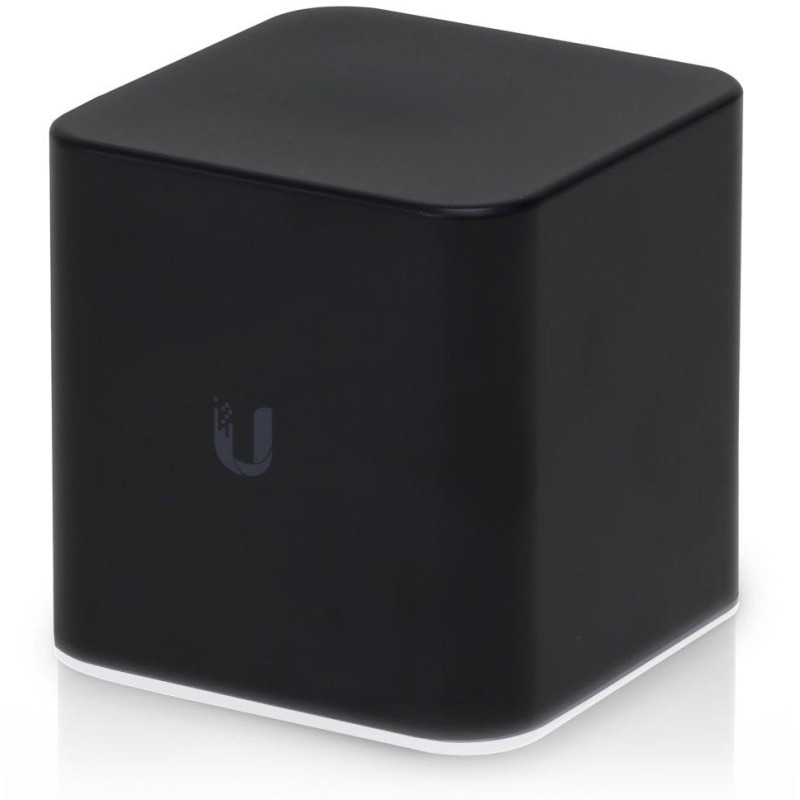

Ubiquiti AirCube ISP
AirCube ISP is a designer 2.4 GHz Wi-Fi router that stands out with a powerful antenna and great coverage of every home. In addition, it integrates remote management of UNMS end devices and supports the UNMS Mobile application for quick setup.
AirCube ISP has an innovative 4 dBi antenna that extends Wi-Fi signal coverage beyond the limits of conventional routers. Thanks to the 2x2 MIMO antenna, the router achieves speeds of up to 300 Mbps on the wireless side.
The AirCube ISP has four RJ-45 ports , two of which are PoE ports. The PoE In port is used to power the router itself, the PoE Out port supports passive PoE 24 V on the output.
AirCube ISP offers two options for configuring the router. Quick setup using the UNMS Mobile application for mobile devices (phones, tablets) or remote management of multiple Ubiquiti devices in the UNMS software. The standard interface at the router's IP address is rather informative, offering the ability to download or upload the configuration, upgrade the firmware, reboot.
The UNMS Mobile application ( Android , iOS ) helps with simple and convenient router configuration.
UNMS software is a comprehensive controller for centralized management of all airCube routers and other Ubiquiti network elements. It offers an intuitive web interface, quick device configuration, graphical reports for effective monitoring and troubleshooting. The biggest advantage is zero license fees for using the software.
The PoE Out WAN port can also be used to power the Ubiquiti airMAX client unit, so you only need one source to power both devices. PoE Out is disabled by default, it must be enabled in the settings.
AirCube ISP offers two power supply options, using a 24 V/1 A PoE injector or a 5 V/2 A Micro USB adapter.
AirCube ISP is supplied without power supplies.
BASIC SPECIFICATIONS
Standard: IEEE 802.11n
Data transfer rate: 300 Mbit/s (2.4 GHz)
Ports: 4x 10/100 Mbps RJ-45, 1x micro USB
Frequency: 2.4GHz
PoE support: yes
Dimensions: 89.5 x 89.25 x 87.8 mm
