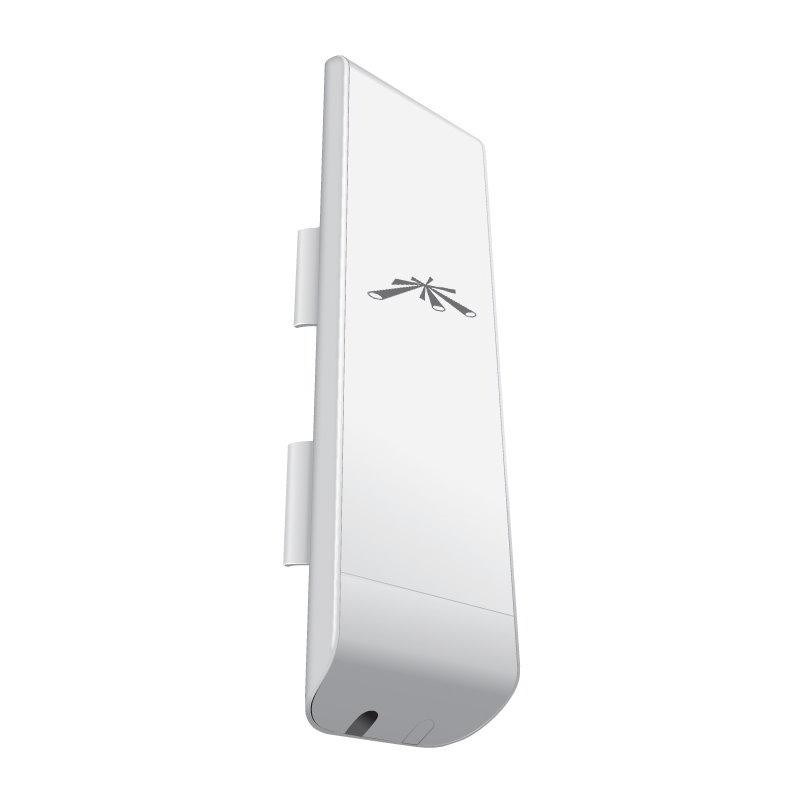

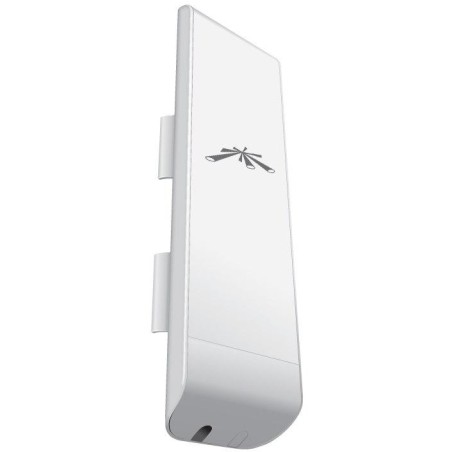

Ubiquiti NanoStation M2
NanoStation M2 is a powerful complete outdoor unit including an 11 dBi antenna (MIMO) for the 2.4 GHz band. The unit allows communication at a real speed of up to 150 Mbps . Another advantage is, in addition to the high transfer rate thanks to the 802.11n standard, the use of TDMA time division multiplexing, which allows more than 300 clients to be connected to the unit in AP mode and low latency. Compared to its predecessor NanoStation2, it has a more powerful processor clocked at 400 MHz and larger memory. The package also includes a 15 V power supply and a PoE injector, which contains a reset button with which the NS can also be put into TFTP mode for firmware recovery.
BASIC SPECIFICATIONS
Wi-Fi standard: 802.11b/g + airMAX
CPU frequency: 400 MHz
Number of cores: 1
RAM memory: 32 MB
Ports: 2x RJ-45
PoE support: yes
Frequency band: 2412 - 2462 MHz
Antenna: 11 dBi internal
Dimensions: 294 x 31 x 80 mm
Weight: 400g
Radiation characteristics:
Reflection loss:
UBNT NanoStation M2 - AP/client 2.4GHz, antenna 11dBi MIMO, airMAX, 2x RJ45, PoE 24V
Access point, client, antenna 11dBi, outdoor, MIMO 2.4GHz, airMAX, 2x RJ45, PoE 24V
