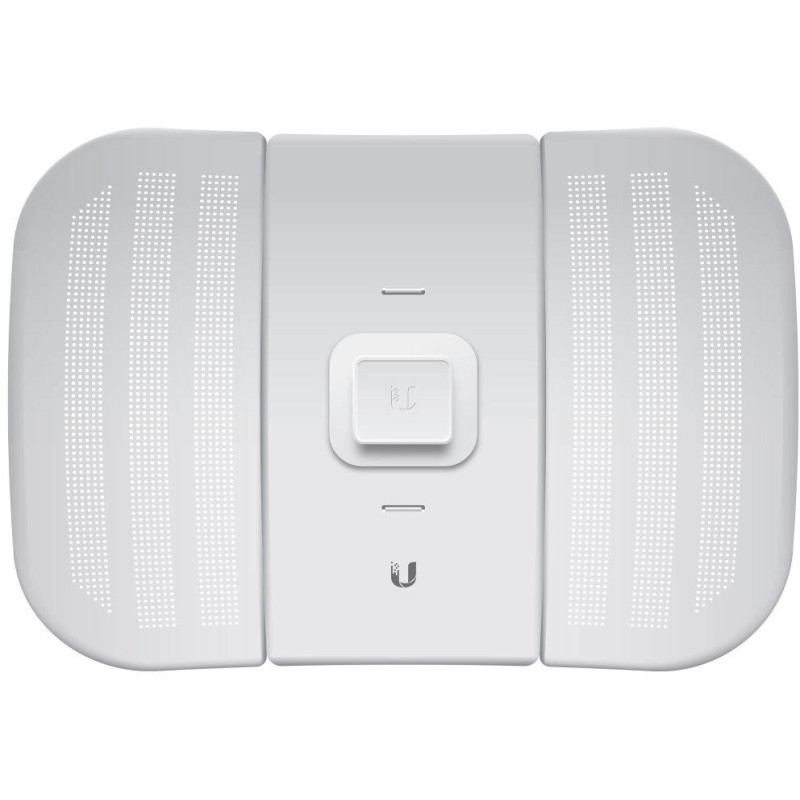

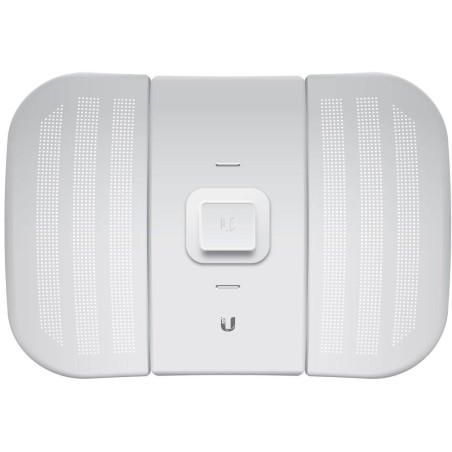

Ubiquiti LiteBeam M5-23
LiteBeam (LBE-M5-23) is a powerful complete outdoor unit including a 23 dBi antenna for the 5 GHz band suitable as a client device or for point-to-point connection. The unit allows communication at speeds up to 100 Mbps.
LiteBeam uses a newly designed lightweight antenna design for easier tool-free installation. Patented InnerFeed technology integrates the entire radio part directly into the radiator, which is covered with highly durable UV stabilized plastic.
For high transmission speeds, the unit uses the 802.11a/n standard and the revolutionary AirMAX (TDMA) protocol to achieve low latencies. The antenna system consists of a 23dBi antenna . With LiteBeam units, it is possible to connect a client up to a distance of 30 km.
The advantage of Litebeam is the spirit level and the innovative articulated bracket , thanks to which it is possible to rotate the antenna to the desired position and aim it precisely.
Despite the parabolic antenna, the unit comes in a practical, compact package. The excellent price/performance ratio and easy installation make it ideal for massive deployment in wireless networks.
The package includes a POE adapter 25V/0.2 A.
BASIC SPECIFICATIONS
Frequency range: 5150 - 5875 MHz
Gain: 23 dBi
Memory: 64MB
Dimensions: 362 x 267 x 184 mm
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
