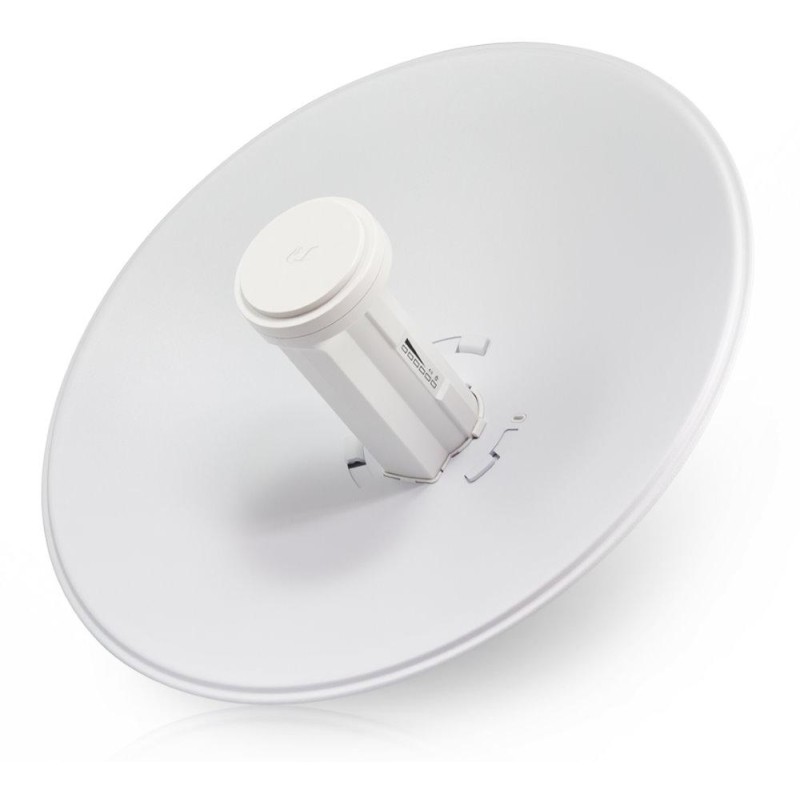

Ubiquiti PowerBeam M5 300
PowerBeam (PBE-M5-300) is a powerful complete outdoor unit including a 22 dBi MIMO 2x2 antenna for the 5 GHz band suitable for PtP connections. The unit allows communication at speeds up to 150 Mbps .
The PowerBeam M5 300 is a direct replacement for the NanoBridge M5 22 dBi units. The PowerBeam uses a new antenna design for greater immunity to interference, has an improved design for easy installation. The unit material uses GEOMET technology for high corrosion resistance.
For high transmission speeds, the unit uses the 802.11a/na standard and AirMAX (TDMA) technology to achieve low latencies .
The antenna system consists of two antennas (MIMO) with horizontal and vertical polarization, which use patented InnerFeed technology to achieve the best performance while maintaining a good price.
A big advantage is the ESD/EMP surge protection on both wireless and Ethernet parts up to 24 kV !
The web administration is very simple and clear. You can set, for example:
- AP, client or WDS mode
- traffic shaping
- Quality of Service
- between WAN and LAN transparent bridge or routing, without NAT or with NAT
- the signal strength that a specific signaling LED should correspond to
- output power up to 26 dBi
In bridge and WDS mode, the device supports IPv6 transmissions transparently.
The package also includes a 24 V PoE power supply .
BASIC SPECIFICATIONS
Wi-Fi standard: 802.11a/n
CPU frequency: 560 MHz
Number of cores: 1
RAM memory: 64 MB
Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna: 300 mm, 22 dBi
Dimensions: 325 x 325 x 256 mm
Weight: 1203g
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
