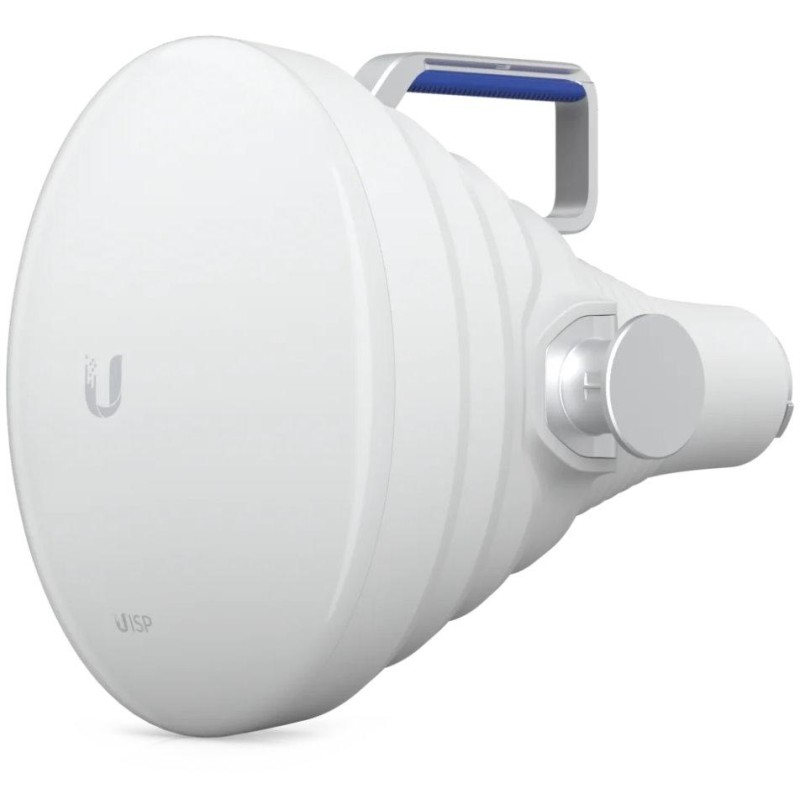

Ubiquiti UISP Horn - horn antenna, 5-6 GHz, gain 19.5 dBi, angle 30°, for Wave MLO5, airFiber 5XHD, Rocket LTU/ AC Prism

Ubiquiti UISP Horn

Highly isolated 19.5 dBi point-to-multipoint (PtMP) horn antenna that covers a wide range of operating frequencies (5.15 - 6.875 GHz).

The UISP Horn is an efficient PtMP antenna that provides high isolation in congested environments thanks to its wide operating frequency range. Using the included WaveGuide adapter, this antenna can be easily connected to and amplified by the airFiber 5XHD (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz (RP 5AC) radio. The antenna also has a latch on each side for a secure snap-on connection of the unit. Operating frequency may vary depending on regional radio frequencies and regulations.

•

• High-isolation 30° horn antenna that covers a wide range of operating frequencies (5.15 - 6.875 GHz)

• Low return band (back lobe) for co-location of equipment

• PtMP connection range 15+ km

• Die-cast, UV-stable polycarbonate housing for increased durability and weather resistance

• Antenna for mast/pole mounting (⌀ 25 to 70 mm) with metal handle for easy carrying

• Two side latches for reliable unit connection


BASIC SPECIFICATIONS

Frequency range: 5.15 - 6.875 GHz

Gain: 19.5 dBi

Radiation angle: Azimuth 30° (6 dB), Elevation 25° (6 dB)

Polarization: dual, linear

Max. VSWR: 2:1

Dimensions: 380 x 282 x 224 mm

Weight: 3.06 kg + 925 g bracket

Compatibility: airFiber 5XHD (AF 5XHD), LTU Rocket, airMAX Rocket Prism AC 5 GHz (RP 5AC)

Manual (assembly instructions):

https://dl.ui.com/qig/uisp-horn

Datasheet:

https://dl.ui.com/ds/uisp-horn_ds
