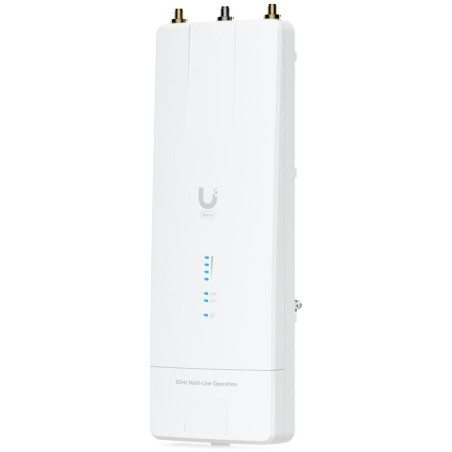

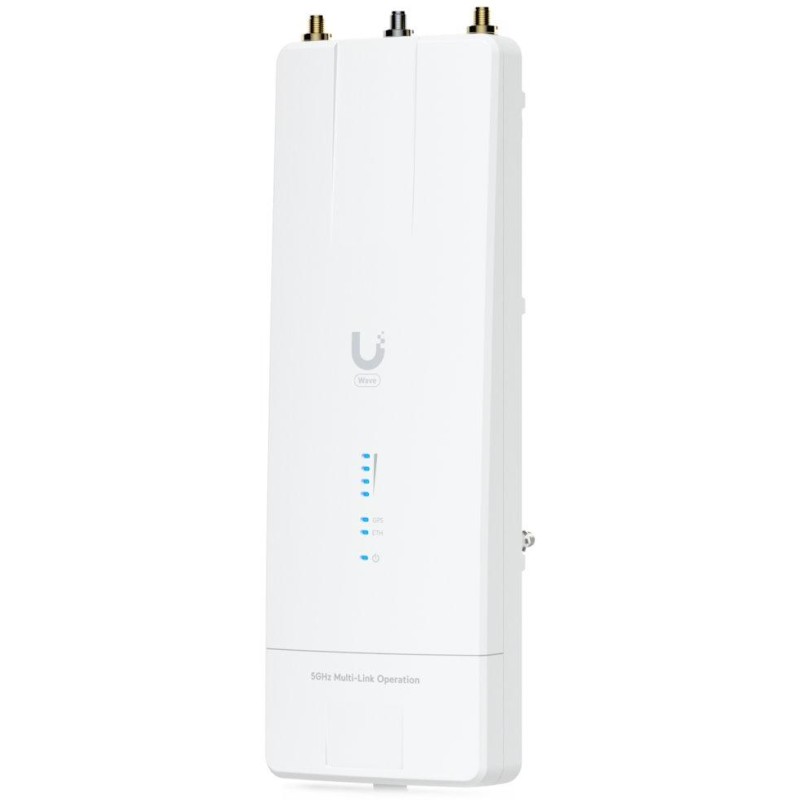

Ubiquiti UISP Wave MLO5
High-performance dual-band 5 GHz Wi-Fi 7 Based unit with Multi-Link Operation (MLO) technology, which ensures higher throughput and reliable connection. Top performance is guaranteed by a quad-core IPQ5322 processor with a clock speed of 1.5 GHz and 1 GB DDR4 memory. The device is fully compatible with airMAX, airFiber X, UISP Dish and UISP Horn antennas , which ensures maximum deployment flexibility.
Designed for easy mast mounting.
- 1× 10GbE RJ-45 and 1× SFP+
- Dedicated radio for spectral analysis
- 5 GHz, connection range over 100 km
- GPS support
- Throughput 5+ Gbps
- Channel Puncturing
- Bluetooth wireless connection
- Pole mount diameter: 25.4-50.8 mm (1" to 2") on the outside diameter of the tube/pole
BASIC SPECIFICATIONS
Compatibility: airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn
Interface: 1× 10G RJ-45, 1× 10G SFP+, 2× RP-SMA connector, 1× GPS antenna connector
PoE support: yes, passive PoE
Power supply: 54 V DC, 0.56 A, 10 GbE PoE adapter (included)
Supported voltage range: 44-54 V DC, 22-27 V DC
Power supply method: passive PoE 4 pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), passive PoE 2 pairs (4, 5+; 7, 8-), for 44-54 V DC only
Consumption: max. 20 W
Protection level: IPX6
Operating temperature: -40 to +60 °C
Dimensions: 249.3 × 82 × 47.6 mm
Manual (assembly instructions):
dl.ui.com/qig/wave-mlo5
The connection range stated by the manufacturer depends on local regulations and local conditions. Operation of 5GHz connections in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3 .
