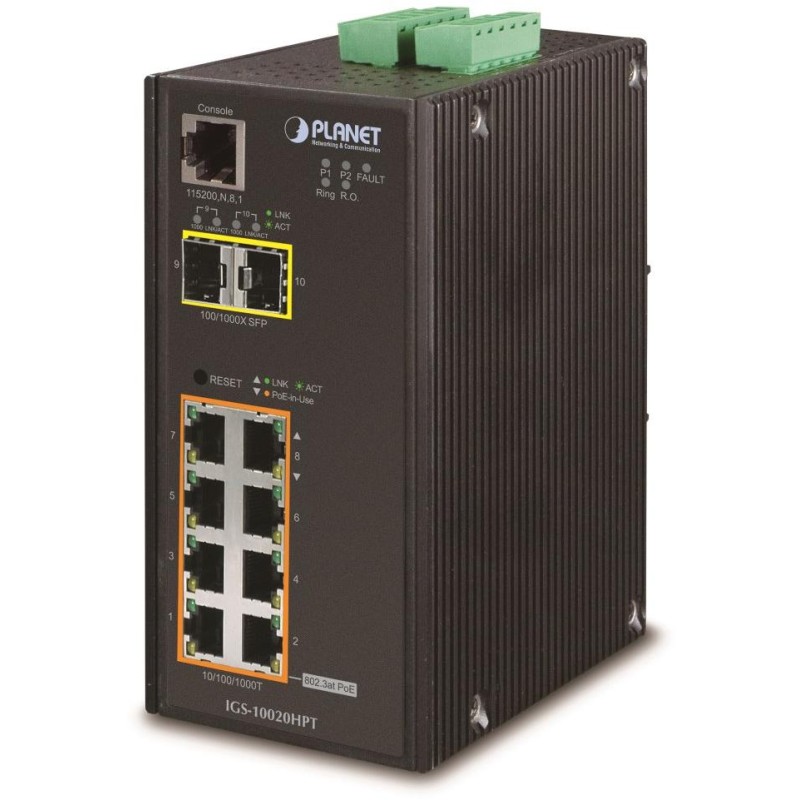

PLANET IGS-10020HPTv3
Industrial managed switch and converter 8x RJ-45 100/1000Base-T, 2x SFP 10/100/1000Base-X, IPv6 support.
Web/SNMPv3 management, 255 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP snooping, LLDP.
Power supply option in the entire range of 12 - 48 V DC , IP30 protection, aluminum housing, operating temperature -40~75°C.
Cabling diagnostics. Surge protection ESD+EFT LAN and power ports up to 6 kV. DIN rail or wall mounting.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
In addition to the well-known Spanning Tree method (which has a recovery time of a few seconds), the IGS-10020HPT is equipped with a specialized ERPS (Ethernet Ring Protection Switching) function for redundancy, which has a recovery time and a new path finding time of up to 50ms. The switch has the ability to precisely synchronize the network clock thanks to the PTP (Precision Time Protocol) protocol according to IEEE 1588v2. Static L3 routing is supported for up to 32 rules and 128 VLAN interfaces.
Moreover, the switch is suitable for various applications in vehicles and monitoring system thanks to e-Mark certification . It meets the power and data transmission needs for surveillance system, video transmission and wireless services in transportation.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX, 1 x RJ-45 serial console port, 2 x DI/DO digital logic interface
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 20 Gbps bus, operational 14.8 Mpps
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 12-48 V power supply (power supply not included)
Protection: ESD up to 6 kV, EFT up to 6 kV, switching alarm relay (24 V/1 A) in case of primary power failure, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40°C - 75°C, humidity up to 95%
Certification: e-Mark E24 ECE-R 010
Dimensions: 152 x 107 x 72 mm
Weight: 1096g
POE function:
Total power output: 60W for DC 12V, 120W for DC 24V, 240W for DC 48V, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8x up to 36 W
Power supply type: End-span
ProgressActive functions:
integrated scheduler for scheduled shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, ACL 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 500Mbps - 1000Mbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link Aggregation: IEEE 802.3ad LACP, 8 ports in 6 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding, 256 rules
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
