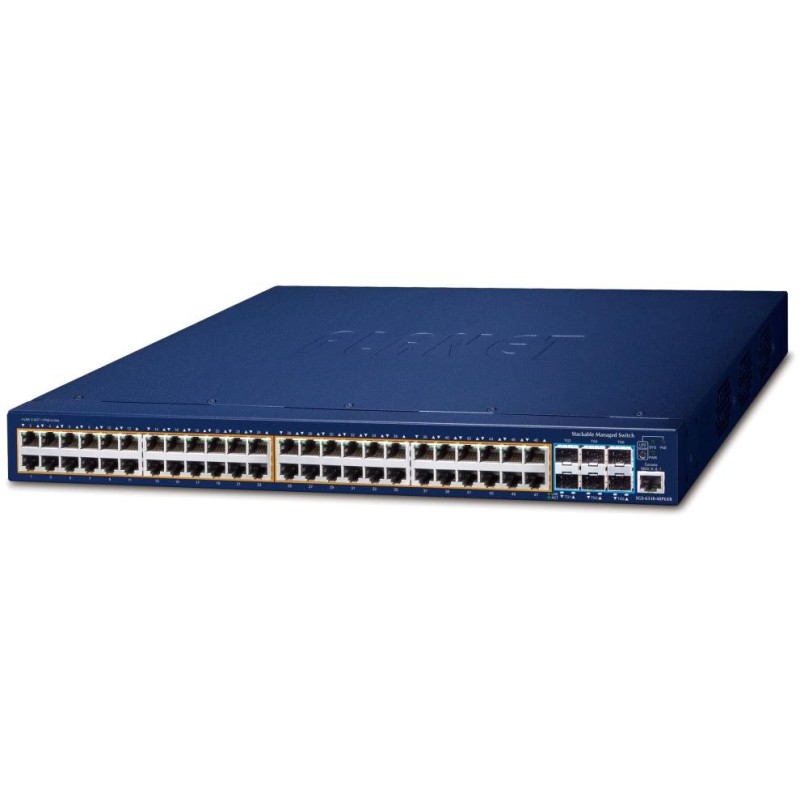

PLANET SGS-6310-48P6XR
Stackable managed L3 PoE switch, 48x RJ-45 10/100/1000 Base-T, 6x 10G SFP+ Base-SR/LR , 1x RJ-45 (RS-232) console port, PoE+ injectors 802.3af/at with total power up to 740 W (370 for AC power) .
IPv4/IPv6 static routing at layer 3, dynamic routing using RIP (Routing Information Protocol) or OSPF (Open Shortest Path First), virtual and HW stacking, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching).
Q-in-Q, VLAN, Multiple Spanning Tree, MSTP, MLD, LACP, IGMP, QoS, LLDP, ACL - Access Control List, DHCP Snooping, IP Source Guard, Dynamic ARP, SNMP, 802.1x, RADIUS/TACACS+, SFP-DDM (Digital Diagnostic Monitor).
Management - console/Telnet/web/SNMP v1/v2c, support for SSH v1/v2, TLS v1.2 and SNMP v3, capacity 216 Gbps, routing 160.7 Mpps , Rackmount 19" (1U), power supply AC 100-240 V (50/60 Hz) + DC 55 V (terminal block) .
- Hardware Stacking - virtualization into one logical volume/system, 10G SFP+ interface, stack management using a single IP address, support for up to 8 hardware units
- IP routing - supports RIP v1/v2 and OSPF v2 (IPv4) + RIPng and OSPFv3 (IPv6), VRRP v1/v3 for redundant routing deployment, route redistribution, hardware VLAN routing
BASIC SPECIFICATIONS
Physical properties:
Ports: 48x RJ-45 10/100/1000 Base-T, 6x SFP+ 10G Base-SR/LR (backward compatible with 1000 Base-SX/LX/BX), 1x RJ-45 (RS-232) console port
Memory: 16k MAC addresses, 1.5 MB buffer
Throughput: 216 Gbps bus, operational 160.7 Mpps (64b)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant, AC 100-240 V (50/60 Hz) + DC 55 V, total power consumption up to 48 W (max. 830 W with PoE)
Protection: up to 6 kV (thunder-proof)
Operating temperature: 0 to +50 °C
Dimensions: 440 x 300 x 44 mm
Weight: 5200g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c + support for SSH v1/v2, TLS v1.2 and SNMP v3
Access Control: IP/MAC or Time-based ACL
L3 routing: yes, static and dynamic routing, RIPng, OSPFv3, VRRPv3
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
Time ACL, filtering traffic by time
QoS traffic prioritization: 8 priority queues on all ports, IEEE 802.1pa traffic prioritization according to ToS/DS in IP packet, CAR, HQoS, MAC/IP/TCP/UDP, IPv4/IPv6 DSCP, supports strict priorities and Weighted Round Robin (WRR), Tail-Drop, WRED, flow monitoring and traffic profiling
VLAN support:
VLAN with 802.1Q tags, up to 4K VLAN groups
802.1ad Q-in-Q tunneling (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
VLAN with IP subnet
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, protocol IEEE 802.1s Multiple Spanning Tree
BPDU and root guard support
Port mirroring: RX, TX, RX+TX, many to one, one to one
Link aggregation: IEEE 802.3ad LACP/static trunk, 64 groups with 8 ports per group
Multicast IGMP: IGMP v1/v2/v3 snooping, IGMP querier mode support, MLD v1 support, MVR support, up to 1024 multicast groups (IPv4 + IPv6)
Authentication of connected devices: AAA TACACS+ and IPv4/IPv6 authentication via RADIUS (802.1x port/MAC based access control + RADIUS/TACACS authentication)
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
PoE function:
Total power output: 740 W, PoE 802.3af, PoE+ 802.3at
370W (max.) AC
740W (max.) DC
740W (max.) AC + DC
Number of injectors: 48x up to 30 W
Power supply type: End-span
Advanced features:
automatic detection of powered device (PD)
Circuit protection prevents power interference between ports
overall PoE power budget management, port priority, power limitation, PoE schedule, PoE enable/disable for individual ports
PD classification detection
integrated scheduler for planned shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Ethernet ring topologies STP/RSTP/MSTP and ERPS
