Ubiquiti UISP airFiber 60 XG

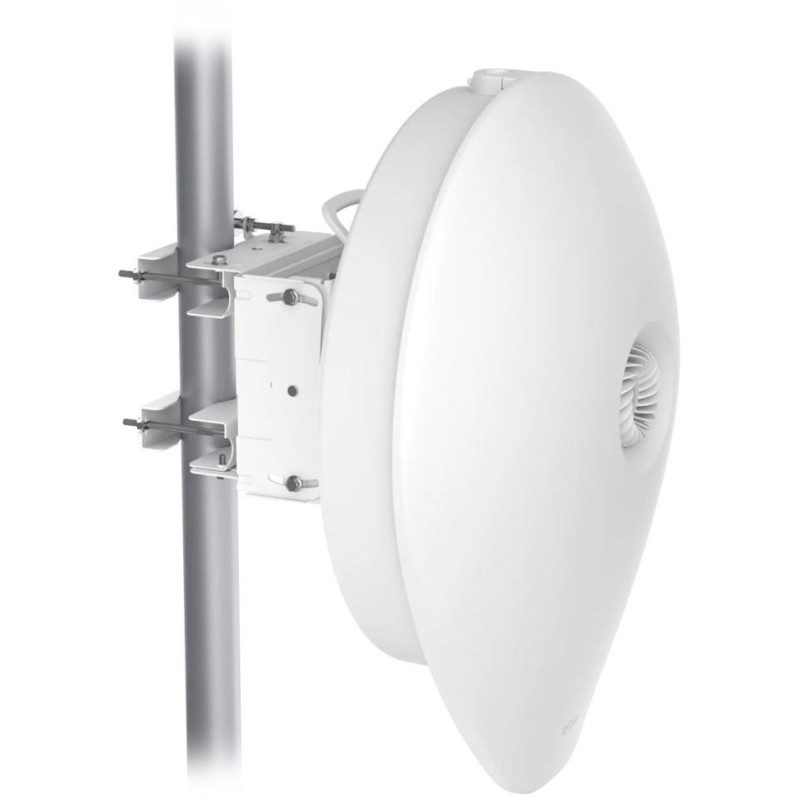

UISP airFiber 60 XG (AF60-XG) is a powerful multi-gigabit outdoor unit (bridge) for the 60 GHz band. It is designed for Point-to-Point connections up to 4 km (and even more under ideal conditions). The unit allows communication at speeds of up to 3.8 Gbps or 6 Gbps with channel bonding , or 866.6 Mbps in the backup 5 GHz band . The antenna gain is 45 dBi for the 60 GHz and 26 dBi for the 5 GHz antenna.
The unit provides high throughput with low interference and latency in the 60 GHz spectrum, making it an ideal backhaul element. This compact and highly rugged device also features integrated GPS and Bluetooth management to simplify setup, configuration and monitoring.
Features and functions:
- Low interference (60 GHz spectrum)
- Connection range up to 4 km (even more under ideal conditions)
- Throughput 3.8 Gbps (6 Gbps with channel bonding enabled) + backup 5 GHz band (866.6 Mbps)
- Integrated GPS module + Bluetooth for management
- Easy setup via Bluetooth using the UISP Mobile app
- Terragraph certification
- Ideal for Internet service providers
- 1x 10G SFP+ slot, 1x GbE RJ-45 port
- Quad-Core ARM Cortex A72 (1.6 GHz), 2 GB DDR4 memory
- ISP Design Center support (ispdesign.ui.com)
- Quick setup of the unit using the UISP application (Bluetooth)
Management using UISP application : version 1.4.3 or later
Management using the UISP Mobile application : version 2.19 or later (iOS & Android)
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57-66 GHz)
Transmission speed: 3.8 Gbps or 6 Gbps with channel bonding, 866.6 Mbps in the backup 5 GHz band
Ports: 1x GbE RJ-45, 1x 1/10G SFP+ slot
Radio power (TX): 10 dBm
PoE support: yes, passive PoE 48V
Dimensions: 779 x 664 x 383 mm
Weight: 8.6 kg (13 kg with bracket)
Color: white
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://dl.ui.com/qig/af60-xg
Datasheet:
https://dl.ui.com/ds/af60-xg_ds.pdf
