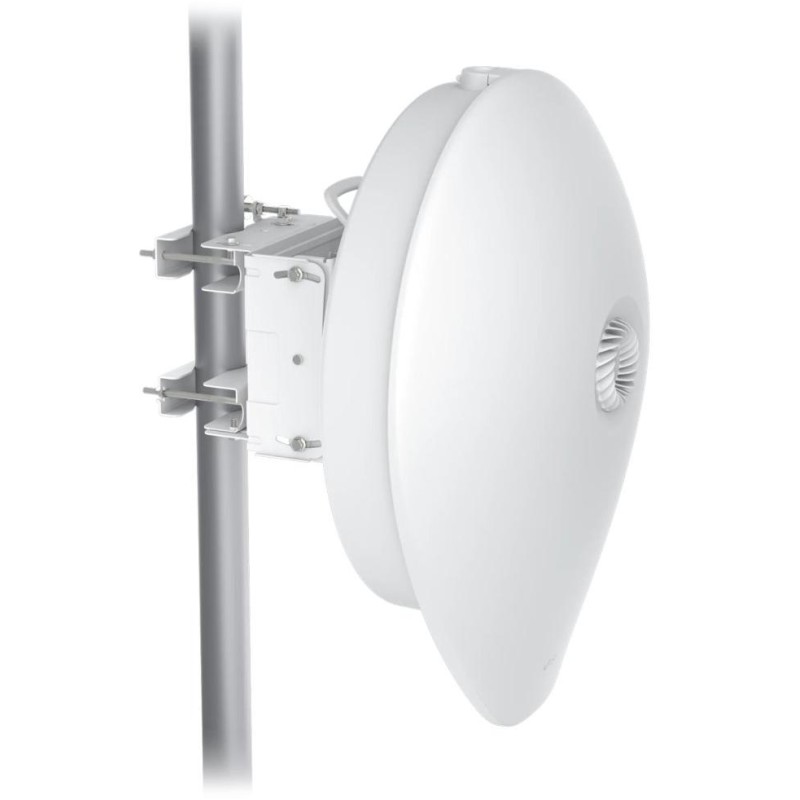

Ubiquiti UISP airFiber 60 XR
UISP airFiber 60 XR (AF60-XR) is a powerful multi-gigabit outdoor unit (bridge) for the 60 GHz band. It is designed for long-distance Point-to-Point connections up to 15 km (even more under ideal conditions). The unit allows communication at a speed of 2.7+ Gbps (Wave technology). The antenna gain is 45 dBi for the 60 GHz band and 26 dBi for the 5 GHz antenna.
The device provides high throughput with low interference and latency in the 60 GHz spectrum, making it an ideal backhaul element. This compact and highly rugged device also features integrated GPS and Bluetooth management to simplify setup, configuration and monitoring.
Features and functions:
- Low interference (60 GHz spectrum) + 5 GHz failover/backup
- Connection range up to 15 km (even more under ideal conditions)
- Throughput 2.7+ Gbps (Discovery protocol, Wave technology)
- Integrated GPS module + Bluetooth for management
- Easy setup via Bluetooth using the UISP Mobile app
- Ideal for Internet service providers
- 1x 1/10G SFP+ slot, 1x GbE RJ-45 port
- Quad-Core ARM Cortex A53 (1.4 GHz), 1 GB DDR3L memory
- ISP Design Center support (ispdesign.ui.com)
- Quick setup of the unit using the UISP application (Bluetooth)
Management using UISP application : version 1.4.3 or later
Management using UISP Mobile app : version 2.20 or later (iOS), version 2.21.5 or later (Android)
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57-71 GHz), 5 GHz reserve
Transfer speed: 2.7+ Gbps
Ports: 1x GbE RJ-45, 1x 1/10G SFP+ slot
Antenna gain: 45 dBi (26 dBi for 5 GHz backup)
Radio power (TX): 10 dBm
PoE support: yes, passive PoE 48V (±10%)
Dimensions: 779 x 664 x 383 mm
Weight: 8.6 kg (13 kg with bracket)
Color: white
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://dl.ui.com/qig/af60-xr.pdf
Datasheet:
https://dl.ui.com/ds/af60-xr_ds.pdf
