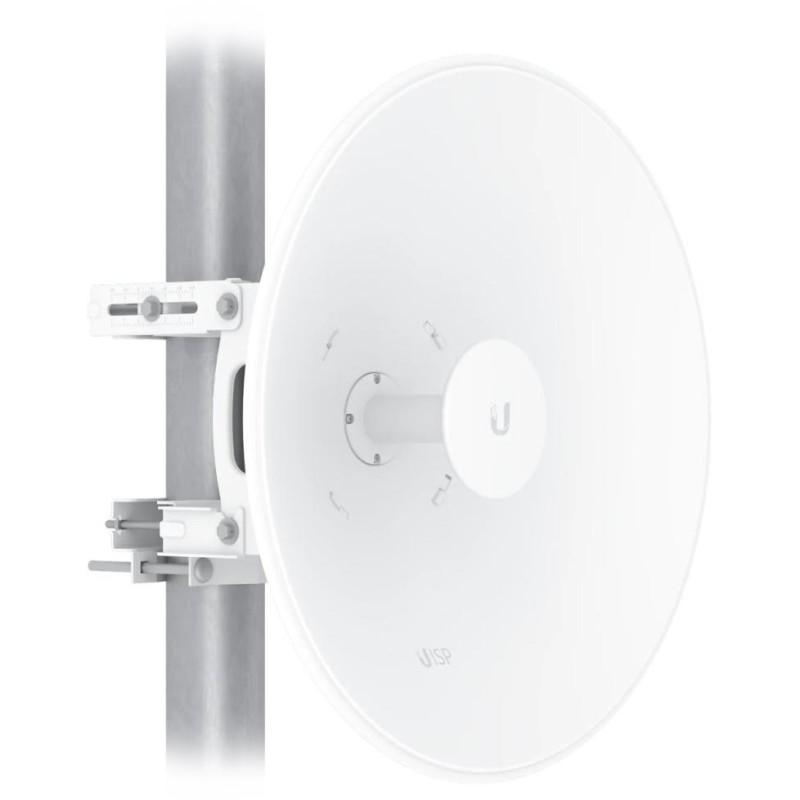

Ubiquiti UISP Dish - parabolic antenna, 5-6 GHz, gain 30 dBi, for Wave MLO5, airFiber 5XHD, Rocket 5AC Prism

Ubiquiti UISP Dish

Directional 30 dBi point-to-point (PtP) antenna that covers a wide range of operating frequencies (5.15 - 6.875 GHz).

The UISP Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency. Using the included WaveGuide adapter, this antenna can be easily connected to the airFiber 5XHD (AF 5XHD) or airMAX Rocket Prism AC 5 GHz (RP 5AC) unit to amplify their signal. The UISP Dish also features a latch on each side for a secure and reliable connection. Operating frequency may vary depending on regional radio frequencies and regulations.

•

• Parabolic antenna that covers a wide range of operating frequencies (5.15 - 6.875 GHz)

• PtP connection range 30+ km

• Precision mounting bracket for easy installation and alignment

• Antenna for mast/pole mounting (⌀ 40 to 90 mm)

• Two side latches for reliable unit connection

• Material - powder-coated galvanized steel, UV-stable polycarbonate, aluminum alloy


BASIC SPECIFICATIONS

Frequency range: 5.15 - 6.875 GHz

Gain: 30 dBi

Beam angle:

Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)

Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)

Polarization: dual, linear

Max. VSWR: 2:1

Dimensions: 650 x 650 x 200 mm

Weight: 4.54 kg + 3.1 kg bracket

Compatibility: airFiber 5XHD (AF 5XHD), airMAX Rocket Prism AC 5 GHz (RP 5AC)

Manual (assembly instructions):

https://dl.ui.com/qig/uisp-dish

Datasheet:

https://dl.ui.com/ds/uisp-dish_ds
