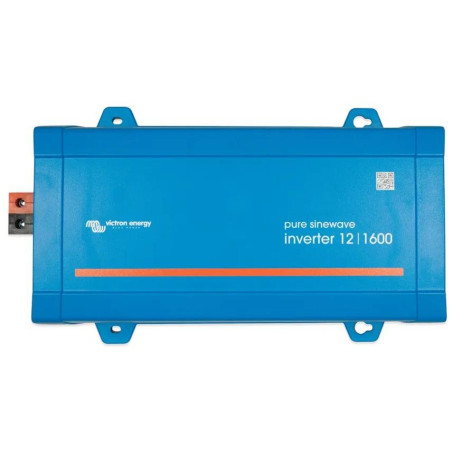

Victron Phoenix VE.Direct Schuko inverter 12V/230V, 1600VA (1.3kW), pure sine wave

Professional mains inverter with a power of 1600VA for converting 12V DC to 230V AC with a pure sine wave.

Victron Phoenix VE.Direct is a reliable solution for autonomous energy systems , solar installations and backup power. The inverter generates a pure sine wave with low harmonic distortion, ensuring the safe operation of sensitive electronic devices including computers, LED lighting and motors.

Thanks to advanced technology, the inverter achieves high efficiency of up to 94% and offers integrated VE.Direct communication for remote monitoring and configuration via the VictronConnect app. The robust aluminum housing with passive cooling ensures quiet and reliable operation.

Advanced protection features
The inverter is equipped with a comprehensive protection system including short circuit, overload, overheating and battery undervoltage protection. Automatic low voltage shutdown protects the batteries from deep discharge.

VE.Direct communication and monitoring
The integrated VE.Direct port allows connection to Victron monitoring systems or the VictronConnect mobile app for performance monitoring, parameter settings and real-time diagnostics.

Applications and compatibility
Ideal for solar systems, caravans, boats, home backup power and off-grid applications. Compatible with all battery types including lead, AGM, gel and lithium.

BASIC SPECIFICATIONS

Continuous power: 1600VA / 1300W

Peak power: 3000W (5 seconds)

Input voltage: 12V DC (9.5-17V)

Output voltage: 230V AC ± 2%
> Frequency: 50Hz ± 0.1%

Waveform: pure sine wave

Efficiency: up to 94%

Harmonic distortion: ≤ 3%

Communication: VE.Direct port

Cooling: passive (without fan)

Dimensions: 375 × 214 × 110 mm

Weight: 5.5 kg
