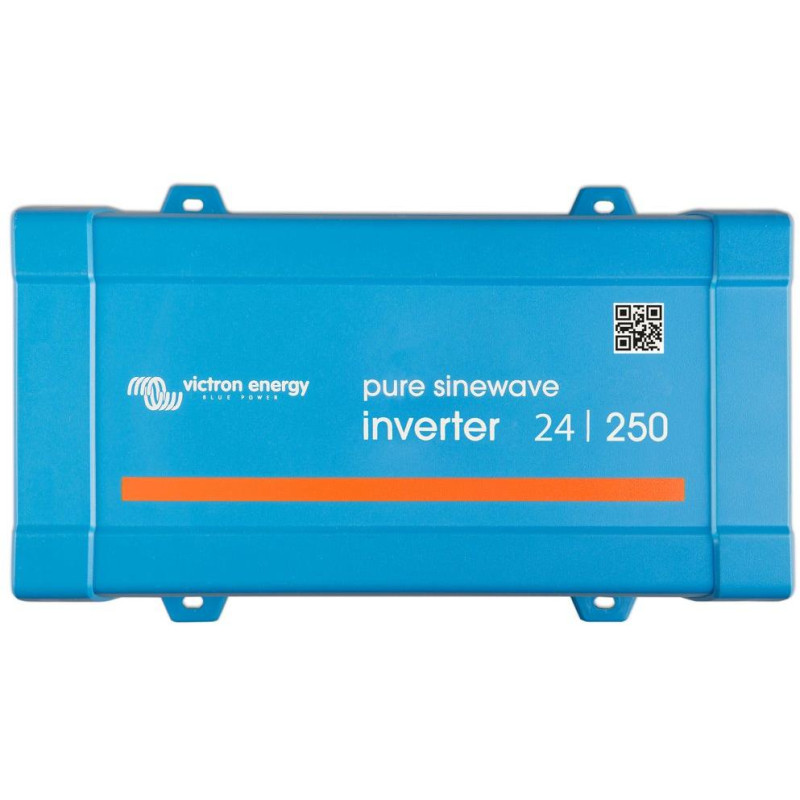

Victron Phoenix VE.Direct 250 VA 24 V
Sine wave fully programmable inverter 24 V (250 VA) with ECO mode and VE.Direct interface.
The inverter incorporates a robust toroidal transformer, which has proven its reliability in Victron Energy inverters for many years. These inverters are short-circuit proof and protected against overheating , whether due to overload or high ambient temperature.
Fully configurable - this is a completely unique feature where you can set the following parameters using a PC:
- Low and high battery voltage alarm and reset level
- Inverter shutdown level at low and high battery voltage and reset level
- Output voltage 220/230/240 V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off sensitivity setting (setting the level when the inverter “falls asleep” and when it “wakes up” again)
- Remote on/off, LED diagnostics
Monitoring:
- Input/output voltage and current
- Load level, alarms and temperature
High starting power
Required to start loads such as power converters for LED lamps, halogen lamps or power tools.
ECO mode
In ECO mode - when the load power drops below the preset value, the inverter switches to standby mode (it goes to sleep and the inverter's own consumption is then only about 1 W). In standby mode with very low own consumption, the inverter will then be switched on regularly for a short time (adjustable parameter, standard every 2.5 s). If the load power exceeds the preset value, the inverter switches on again. Thanks to this function, you save a large amount of energy that the inverter would otherwise consume for its operation.
VE.Direct communication port:
- Computer (VE.Direct to USB cable required)
- Smartphone (Apple and Android), tablet, MacBook and other devices (VE.Direct Bluetooth or Wi-Fi module/converter required)
VictronConnect app for Android mobile devices
VictronConnect app for iOS mobile devices
VictronConnect app for Mac devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
Cables for connecting to the battery are not included.
BASIC SPECIFICATIONS
Continuous output power at 25 °C: 250 VA
Continuous active power at 25/40 °C: 200/175 W
Peak active power: 400 W
Input voltage: DC 18.4-34V
Output voltage: AC 230V (210-245V)
Weight: 2.4 kg
Dimensions: 260 × 165 × 86 mm
