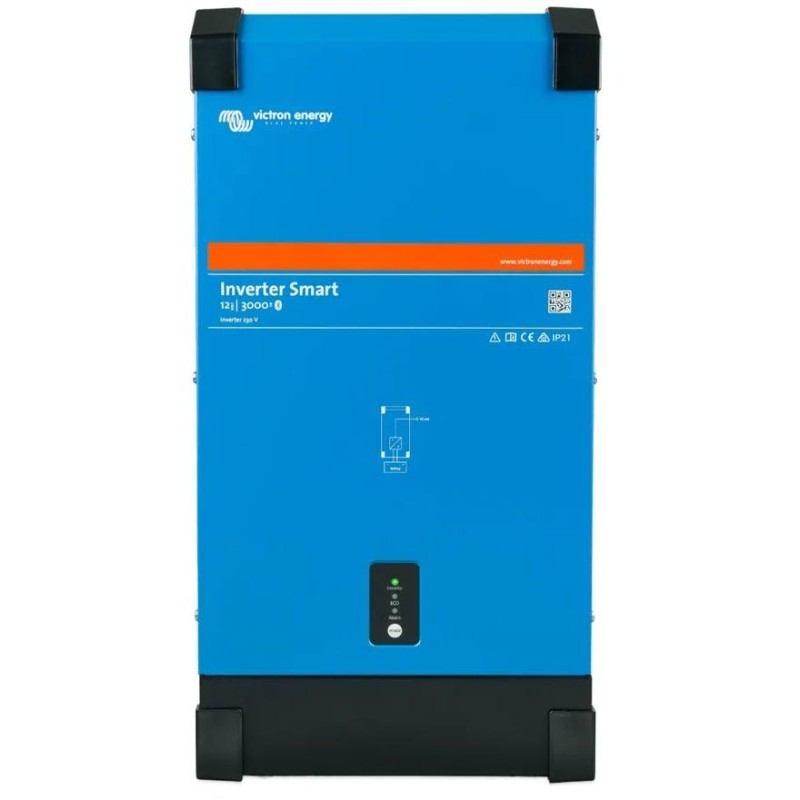

Victron Inverter Smart 3000 VA 12 V
Sine wave fully programmable inverter 12 V (3000 VA) with built-in Bluetooth , wireless setting option and ECO mode.
High starting power
The power required to start loads such as power inverters for LED lamps, halogen lamps or power tools. The inverter contains a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.
Built-in Bluetooth technology and Victron Connect App
This inverter has built-in Bluetooth technology and is fully configurable via a tablet or smartphone. This is a completely unique feature, so you have the opportunity to set the inverter parameters and monitor operation simply wirelessly.
Setting options:
- Low battery voltage alarm
- Setting the voltage level for turning off and restarting the inverter when the battery is discharged
- Dynamic disconnection from the battery when discharged: the voltage level for disconnection depends on the load size
- Output voltage: 210-245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO sensing level
- Alarm relay
Monitoring:
- Input and output voltage
- Load level and alarms
VictronConnect app for Android mobile devices
VictronConnect app for iOS mobile devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
If you prefer setup and monitoring via cable and PC, the drive is equipped with a VE.Direct communication port, which you can connect to using the VE.Direct to USB cable.
ECO mode
In ECO mode - when the load power drops below the preset value, the inverter switches to standby mode (it goes to sleep and the inverter's own consumption is then only about 0.6 W). In standby mode with very low own consumption, the inverter will then be switched on regularly for a short time (adjustable parameter, standard every 2.5 s). If the load power exceeds the preset value, the inverter switches on again. Thanks to this function, you save a large amount of energy that the inverter would otherwise consume for its operation.
Remote power on/off
Gives upA single on/off switch or relay contact can be connected to the two-pin connector.
Cables for connecting to the battery are not included.
BASIC SPECIFICATIONS
Continuous output power at 25 °C: 3000 VA
Continuous active power at 25/40 °C: 2400/2200 W
Peak active power: 6000 W
Input voltage: DC 9.3-17V
Output voltage: AC 230V (210-245V)
Weight: 19 kg
Dimensions: 533 × 285 × 150 mm
