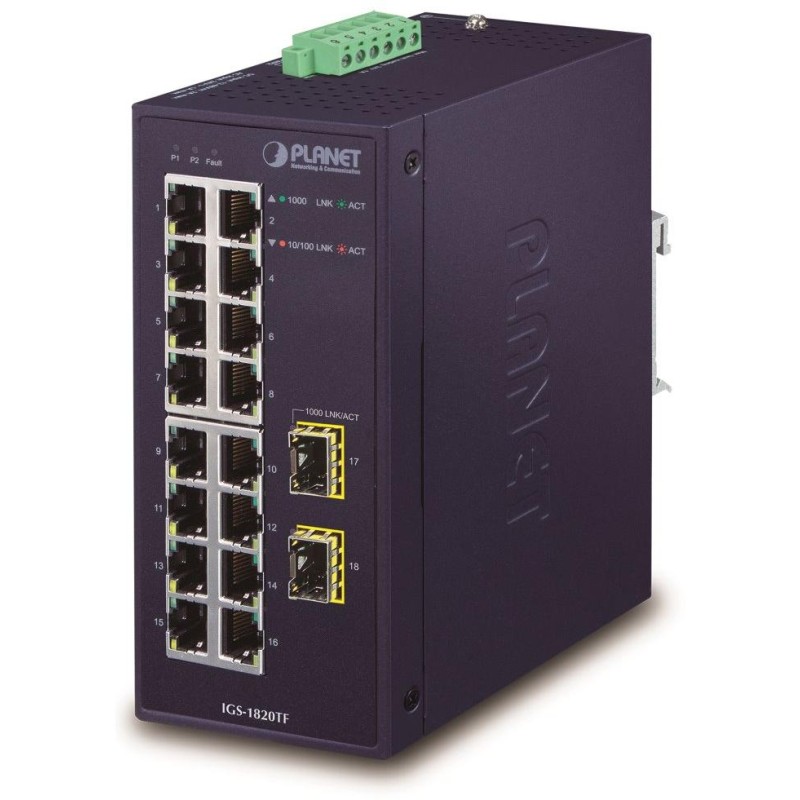

PLANET IGS-1820TF
Industrial switch and converter 16x 10/100/1000Base-T, 2x SFP 1000Base-SX/LX/BX. Energy efficient according to 802.3az.
Dual power supply in the range of DC 12-48 V/ AC 24 V, IP30 protection, aluminum housing, operating temperature -40 °C to +75 °C. ESD surge protection up to 6 kV. Mounting on DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 16 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX/BX
Memory: 8k MAC addresses
Throughput: 36 Gbps bus, operational 26.79 Mpps (64B)
Transmission support: JumboFrame 10KB
Design: DIN rail, wall-mounted
Power supply: 12-48 V DC dual with 24 V AC, total power consumption up to max. 15 W (power supply not included)
Protection: ESD up to 6KV DC
Operating temperature: -40 to 75 °C
Dimensions: 152 x 107 x 66 mm
Weight: 745g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mountingg>:
Wall mounting using the supplied frame :
