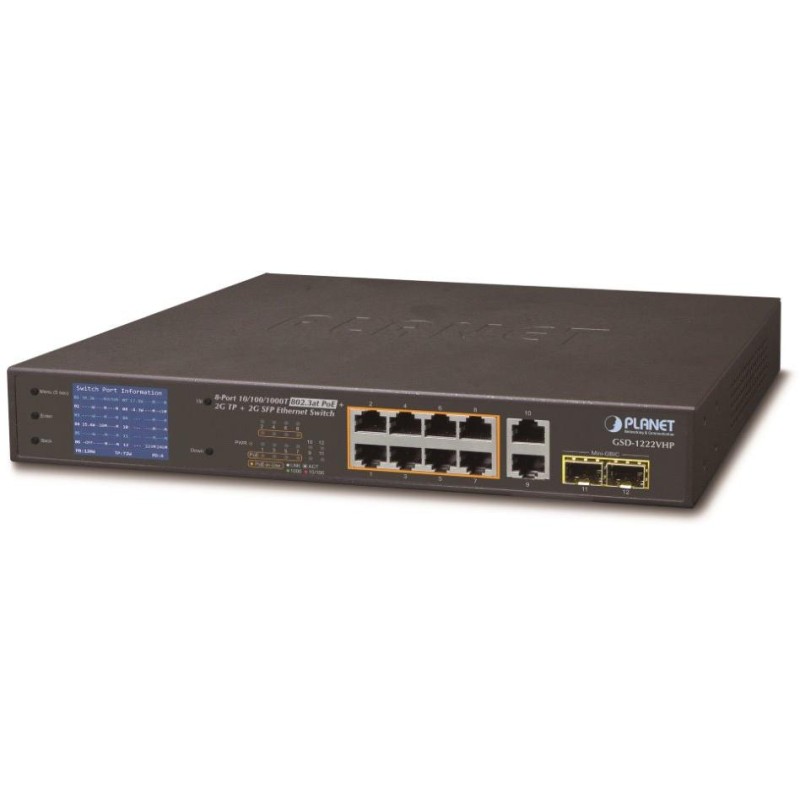

PLANET GSD-1222VHP
Unmanaged switch with eight RJ-45 ports, which are equipped with PoE+ power supply of the 802.3af/at standard and reach speeds of 10/100/1000 Mbps. There are also two RJ-45 ports without PoE power supply. Of course, there is a pair of SFP ports for fast data transfers up to 1000 Mbps. This makes this switch suitable for use in combination with IP cameras.
The RJ-45 ports equipped with the PoE function each have a power of 30 W, and a total power of up to 120 W is available. Other advantages certainly include the switch's 24 Gbps switching capacity, which is not blocked.
The LCD display makes working with the switch easier, clearly showing the current port load and enabling easy switch management. ESD port protection is provided up to 6 KV DC in the event of direct contact.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T PoE+, 2 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-X
Memory: 8k MAC addresses
Throughput: 24 Gbps bus, operational 18 Mpps (64B), non-blocking
Transmission support: Frame 9216 B
Design: 1U rack
Power supply: internal AC 100-240V, 50/60Hz, 2.5A, power consumption max. 130 W
Protection: ESD contact up to 6kV, air up to 8kV
Operating temperature: -10°C - 60°C, humidity up to 90%
Dimensions: 280 x 180 x 44 mm
Weight: 1.8 kg
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30 W
Power supply type: End-span
Advanced features:
Extended mode 10Mb/s with a range of up to 200m
