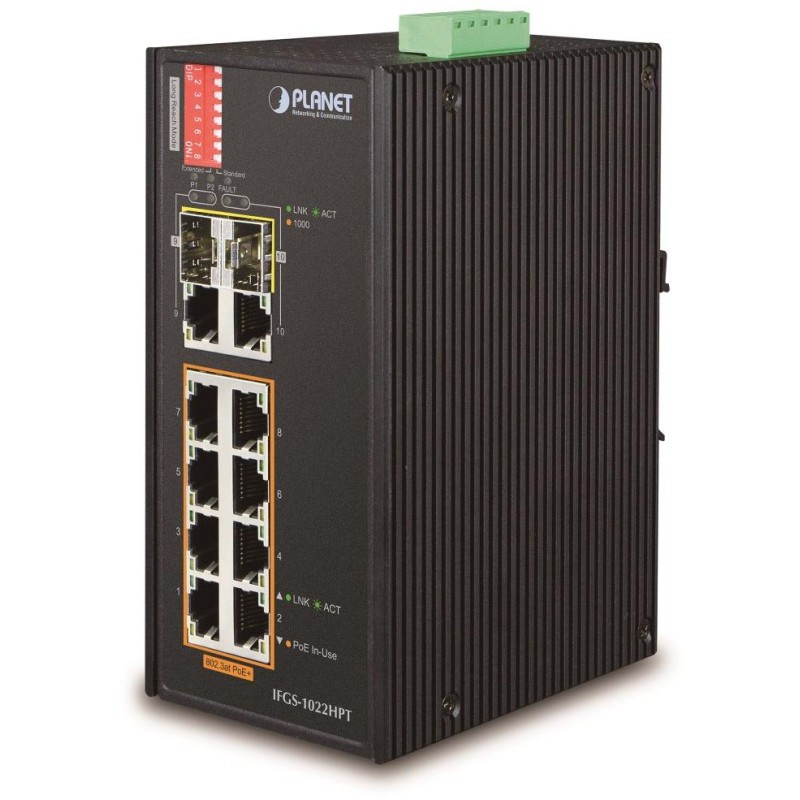

PLANET IFGS-1022HPT
Industrial switch and converter with PoE 8 100Base-TX injectors with total power <240W, 2x SFP slots combined with 2x RJ-45 100/1000Base-X.
DIP switches for activating Extend PoE mode 10Mb/s. Redundant power supply DC 48~56V, IP30 protection, aluminum housing, operating temperature -40 to +75°C.
Surge protection for LAN and power ports up to 6kV. DIN rail or wall mounting.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows you to directly power up to 8 end devices according to the IEEE 802.3at standard, making it an ideal element for applications with reduced power options, and thanks to the Extend PoE mode, it is complemented by the ability to power remote IP devices such as IP cameras at a distance of up to 250m at a speed of 10Mb/s.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100BASE-TX, 2 x RJ-45 10/100/1000BASE-T, 2 x SFP 1000BASE-SX/LX-BX
Memory: 16k MAC addresses, 512 B buffer
Throughput: 5.6 Gbps bus, 4.1 Mpps operational (64B)
Transmission support: JumboFrame 10K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: redundant DC 48-56V power supply, for full use of PoE+ a minimum of 51V is required, total power consumption up to 241W (power supply not included)
Protection: ESD up to 6kV, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 161 x 107 x 72 mm
Weight: 1034g
POE function:
Total power output: 240 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8 x up to 30 W
Power supply type: End-span
Advanced features:
Extended mode 10Mb/s with a range of up to 250m
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transient/burstEFT impulses/groups
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
