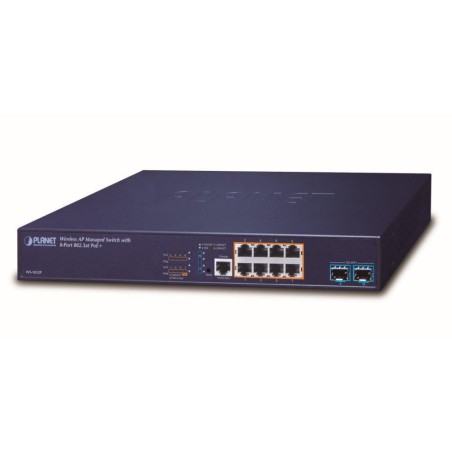

PLANET WS-1032P
PLANET WS-1032P provides centralized control and management of up to 32 access points , allowing service providers and IT managers to manage all wireless APs simultaneously. In addition, it provides IPv6/IPv4 management.
It displays real-time AP status and their heat map, allowing you to determine actual coverage and set appropriate overlap of neighboring access points to optimize wireless network performance.
It offers 8 10/100/1000BASE-T ports with PoE support and 2 SFP+ 1G/2.5G/10G BASE-X ports.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100/1000BASE-T PoE IEEE 803.at/af, 2x SFP+ 1G/2.5G/10G BASE-X, 1x RJ-45 console serial port
Memory: 8k MAC addresses, 4.1 Mb buffer
Max. connected clients: up to 32 APs
Throughput: 56 Gbps bus, operational 41.67 Mpps (64B)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: 100-240 V AC, 50/60 Hz, total power consumption up to 162 W
Protection: ESD up to 6 kV DC
Operating temperature: 0°C - 50°C
Dimensions: 330 x 150 x 44.5 mm
Weight: 1600g
AP management:
Number of managed APs: 32
Number of AP groups: 10
Support Auto Discovery: yes, supports automatic AP discovery
SSID/RF Profile: yes, create and maintain multiple wireless profiles
Cluster management: yes, AP grouping for mass provisioning and batch upgrades
SSID to VLAN mapping: yes, configure SSID to VLAN mapping on supported APs
RADIUS authentication: yes, client authentication in a large corporate network
Supported AP models: IAP-1800AX, IAP-2400AX, WDAP-C1800AX, WDAP-C7200E, WDAP-C7210E, WDAP-W1200E, WDAP-W1800AXU, WDAP-W750E, WNAP-C3220E, WNAP-W2200UE
WDAP-1800AX, WDAP-850AC, WBS-512AC, WBS-502AC, WAP-552N, WBS-502N, WBS-202N, WAP-252N, WBS-200N, WDAP-802AC, WDAP-702AC, WAP-200N, WAP-500N, WBS-500N
Administration functions:
Management: Console, Telnet, Web, SNMP v1, v2c, v3, SSHv2, TLSv1.2
Access Control: IP and MAC based ACL protocol, 256 rules
L3 functions: max. 128 VLAN interfaces, RIPv2, OSPFv2, OSPFv3
ACL filter and bonding:
- IP ACL, traffic filtering by IP address, protocol, port, TCP flags
- MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q tags
VLAN support:
- IEEE 802.1Q
- up to 4K VLAN groups, up to 4094 VLAN IDs
- Q-in-Q tunneling
- Private VLAN Edge (PVE)
- MAC-based VLAN
- Protocol-based VLAN
- WowVLAN
- Multicast VLAN Registration
Spanning Tree Protocol:
- STP protocol, IEEE 802.1d Spanning Tree protocol
- RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
- MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, 10 ports in 5 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
DHCP Snooping: yes
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: 120 W at 25 °C, 100 W at 50 °C, IEEE 802.3at/af
Number of injectors: 8x up to 30.8 W
Power supply type: End-span
Advanced features:
automatic detection of powered device
protection against exceeding maximum temperature
