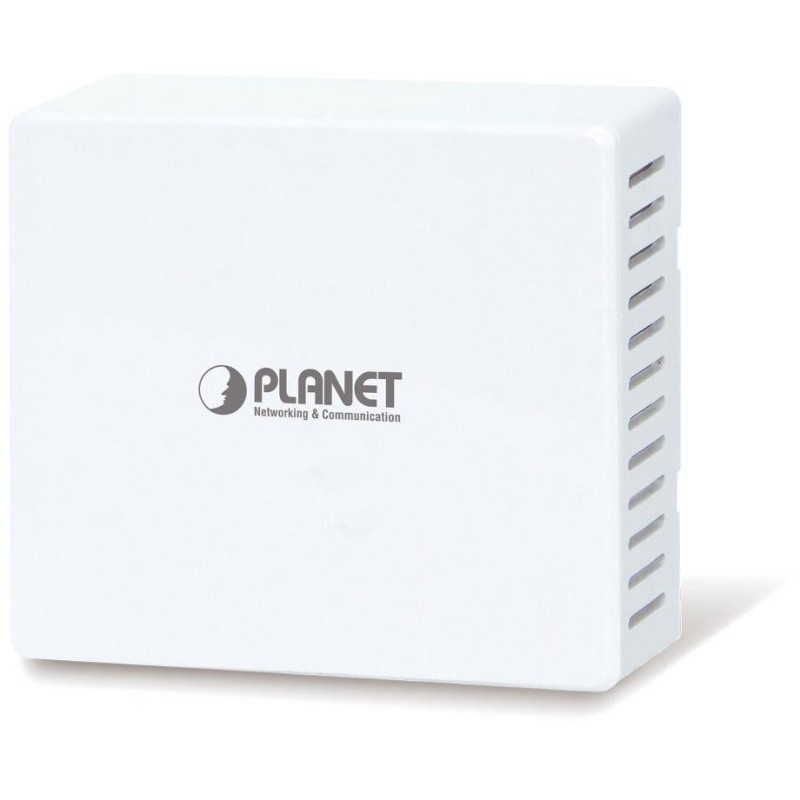

PLANET WDAP-W1200E
Dual-band access point with support for central management via NMS controller. It operates at 2.4 GHz and 5 GHz frequencies of the 802.11a/b/g/n/ac/ac-Wave 2 standard and offers extreme speeds of up to 1200 Mbps . Four integrated antennas with 2 dBi gain and support for 802.11ac Wave 2 MU-MIMO are sufficient for complete coverage of offices and other spaces.
Advanced security thanks to encrypted data transmission according to WEP, WPA/WPA2, WPA-PSK/WPA2-PSK protocols with RADIUS 802.1X authentication effectively prevents eavesdropping by unauthorized users.
The unit is powered via active PoE+ 802.3af/at .
BASIC SPECIFICATIONS
Features:
Wi-Fi standard and transmission support: IEEE 802.11a/b/g/n/ac/ac-Wave 2 with speeds up to 1200 Mbps
Ports: 2x GbE RJ-45, 1x RJ-45 PoE+ port, 1x RJ-11
Antenna: integrated, 4× 2 dBi
Operating frequency: 2.4 GHz and 5 GHz
Security: 64/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless modes: Access point, gateway, WISP, repeater, Super WDS
Transmission speed: 1200 Mbps (300 Mbps 2.4 GHz + 867 Mbps 5 GHz)
Transmitting power: up to 20 dBm (EIRP)
Power supply: PoE+ 802.3af/at, power consumption up to 8 W
Dimensions: 86 × 86 × 45 mm
Weight: 168g
Detailed specifications:
Radio bands: 2.4GHz FCC: 2412–2462 MHz
ETSI: 2412–2472 MHz
5GHz: FCC: 5180-5240 MHz, 5745-5825 MHz
ETSI: 5180–5700 MHz
Wi-Fi standard: IEEE 802.11a/b/g/n/ac, 802.11i, 802.3u, 802.3x, 802.3
LAN standard: IEEE 802.3 10 Base-T, 802.3u 100 Base-TX, 802.3ab 1000 Base-T, IEEE 802.3x flow control
Multiple SSIDs: yes, 8 (4/transmitter)
VLAN support: yes, IEEE 802.1Q, SSID to VLAN mapping (up to 4 SSIDs)
Maximum number of clients: 128 (100 recommended, depending on usage)
ACL (access control list) and MAC filters: MAC address filtering
Internal diagnostics (PING): no
The devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5 GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can turn off. The user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to the ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device to comply with VO-R:
- 5.2 GHz band: 5150-5250 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.3 GHz band: 5250-5350 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.4 GHz band: 5450-5725 MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm)
- 5.8 GHz band: 5725-5875 MHz, max. power 25 mW with built-in antenna or antenna prescribed by the manufacturer
According to the wording of the VO, it is determined under letter g) that automatic regulation must regulate by at least -3 dB. Automatic regulation not mandatory; if the device does not have regulation, then it is sufficient to calculate the radiated power 3 dB lower for use.
