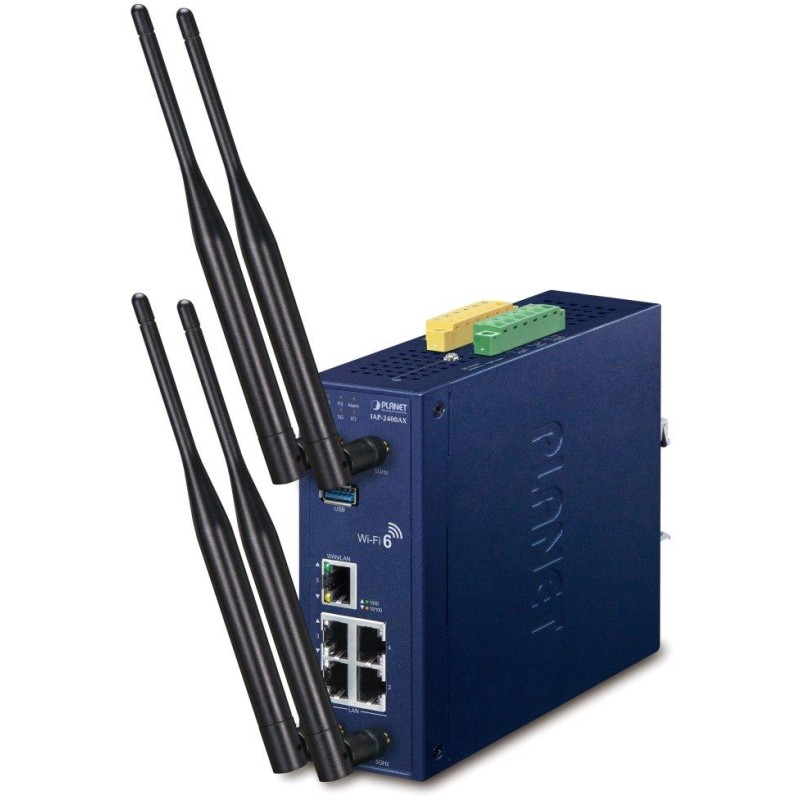

PLANET IAP-2400AX
Ultra-fast industrial Wi-Fi 6 access point 802.11ax 2400Mb/s with integrated 5-port switch. IP30 protection, operating temperature -40 to +75 °C , DIN rail or wall mounting. Dual power supply option in the range of DC 9-54 V (max. 1.8 A).
Support 802.1Q VLAN , 802.3x Flow control, 10K jumbo frame, DI/DO interface , multiple operating modes (AP/Repeater and Gateway), WPA3, OFDMA, MU-MIMO , Beamforming, BSS Coloring, WMM, SPI firewall, DDoS block .
Planet industrial elements are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with fluctuating operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard: IEEE 802.11a/an/ac/ax 5 GHz (4Tx4R)
Number of antennas and their power: 4x SMA 5 dBi detachable antenna
Transmit power: up to 23 dBm
Interface: 5x RJ-45 10/100/1000 Base-T, 1x USB 3.0, DI/DO (2x input, 2x output)
Wireless transmission encryption: WPA, WPA2, WPA3
Wireless modes: Access Point, Gateway, Repeater
Max. connected clients: up to 150 Wi-Fi clients connected at the same time (100 recommended)
Management: yes
Physical properties:
Operating temperature: -40 to +75 °C
Power supply: dual DC 9-54 V (max. 1.8 A), total power consumption up to 10.8 W
Dimensions: 135 x 135 x 50 mm
Weight: 787g
