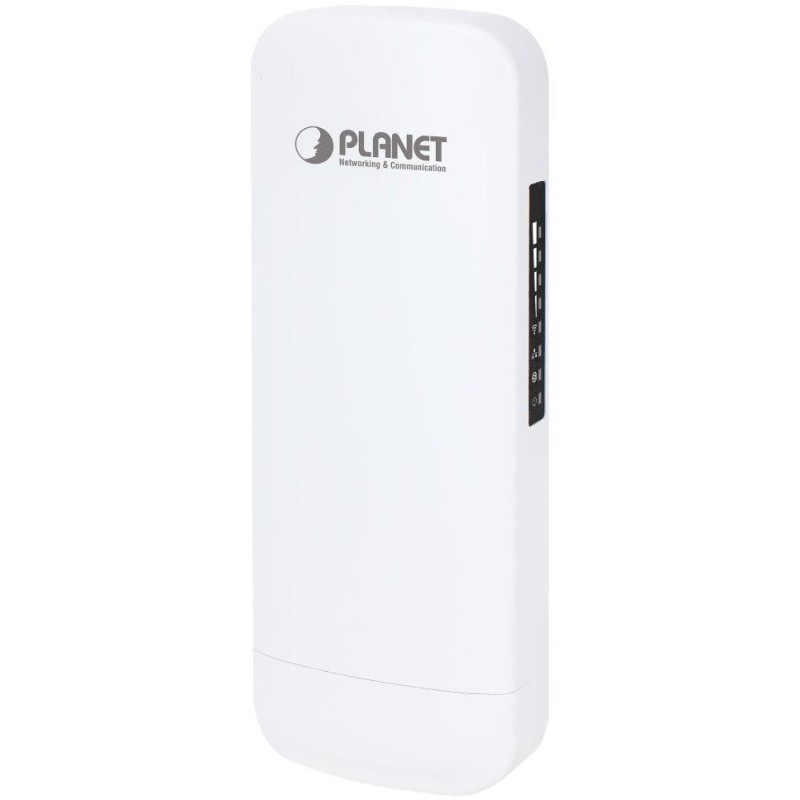

PLANET WBS-512AC
Outdoor wireless access point with integrated router. Features a 14 dBi integrated dual-polarized antenna for stable reception.
The access point is based on 5 GHz radio technology of the 802.11a/n/ac standard with support for MU-MIMO Wave 2 and thus achieves transfer speeds of up to 900 Mbps . In addition, there is an option to switch the unit to PtP mode (master or slave), which significantly reduces the time required to set up the unit.
There are also two RJ-45 ports with a speed of 10/100/1000 Mbps , one of which is equipped with PoE+ technology of the 802.3at standard , through which the unit is effectively powered.
WAN connection support DHCP, static IP and PPPoE, support for port forwarding, DMZ, DHCP server in Gateway/WISP mode.
The unit is resistant to adverse environmental influences according to IP55 certification.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard and transmission support: IEEE 802.11a/n/ac/ac-Wave2 with transmission speed up to 900 Mbps
Frequency band:
FCC: 5180-5240 GHz, 5745-5825 GHz
ETSI: 5180-5700 GHz
Number of antennas and their power: 14 dBi integrated dual polarized
Transmitting power: 25 dBm
Interface: 2 x 10/100/1000Base-T, RJ-45 Ethernet (LAN + PoE)
Spanning Tree Protocol support: no
Wireless transmission encryption: 64/128bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless modes: Access Point, Gateway, Repeater, Super WDS, WISP
Max. connected clients: up to 64 wirelessly (50 recommended)
Multiple SSIDs: up to 4 networks
IAPP: no
Integrated DHCP server: yes
Client isolation support: yes
MAC address filtering: yes
Management: yes, web-based device management, management via PLANET DDNS/Easy DDNS, UPnP support, IGMP Proxy, PPTP/L2TP/IPSec VPN Pass-through, SNMP v1/v2c/v3, MIB I/II, Private MIB
Physical properties:
Operating temperature: -20 to +70 °C
Power supply: 12 V/1 A DC jack, or 48 V/0.5 A DC for IEEE 802.3at PoE+, power consumption up to 10 W
Dimensions: 260 x 87 x 38 mm
Weight: 405g
The devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5 GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can turn off. The user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to the ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device to comply with VO-R:
- 5.2 GHz band: 5150-5250 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.3 GHz band: 5250-5350 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.4 GHz band: 5450-5725 MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm)
- 5.8 GHz band: 5725-5875 MHz, max. power 25 mW with built-in antenna or antenna prescribed by the manufacturer
PThe VO regulation states under letter g) that automatic regulation must regulate at least by -3 dB. Automatic regulation is not mandatory; if the device does not have regulation, then it is sufficient to calculate the radiated power by 3 dB lower for use.
